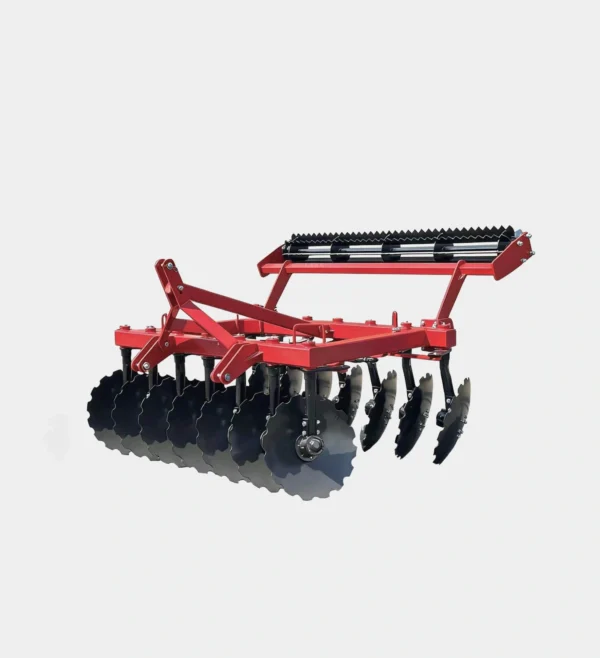

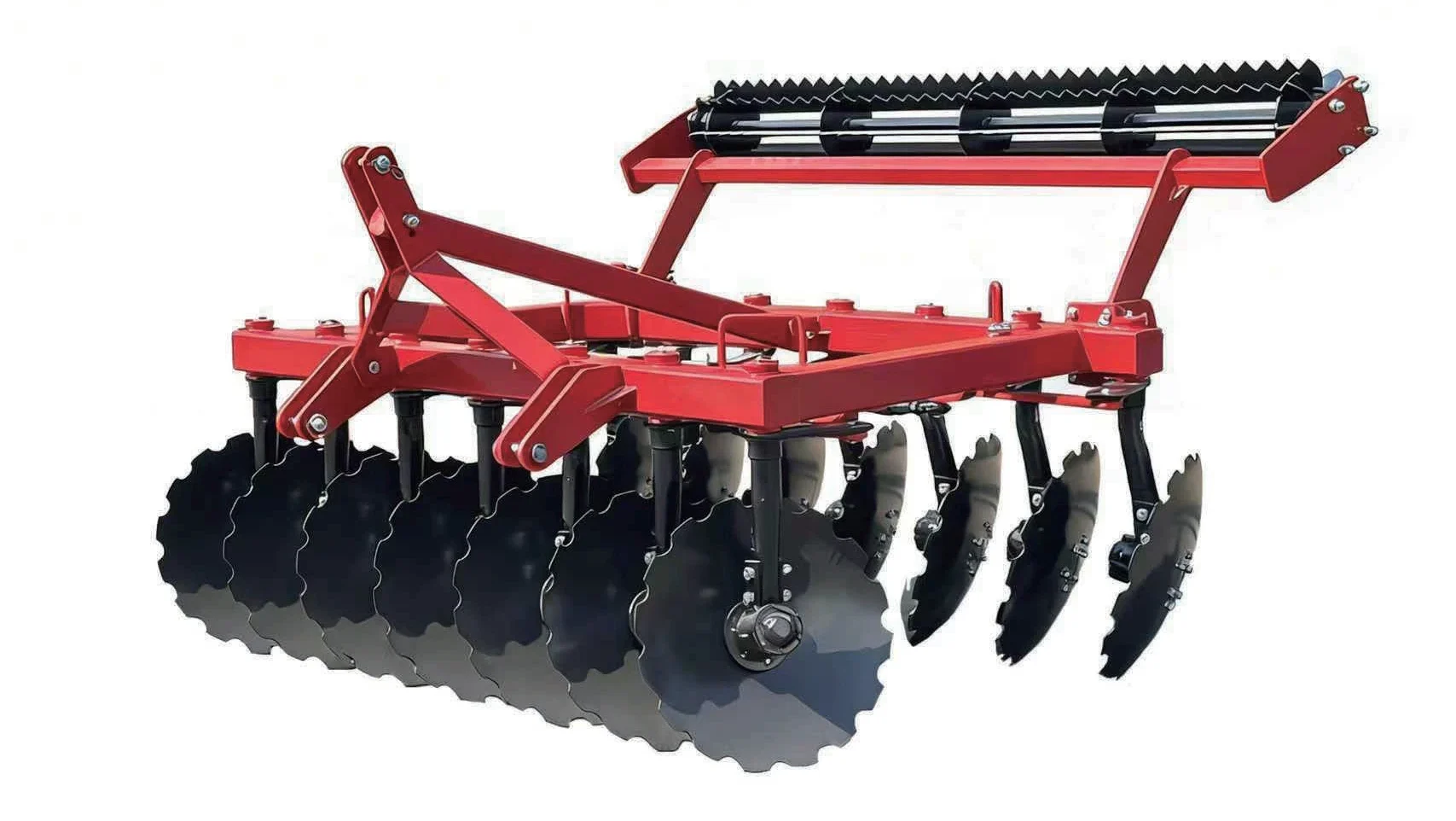

BDL Series High-Speed Stubble Disc Harrow

BDL Series High-Speed Stubble Disc Harrow is an efficient stubble cleaning tillage equipment purpose-built for high stubble plots, compatible with 35-80HP tractors. Its working angle can be flexibly adjusted within a wide range of 0-45°, with maximum working depth up to 140mm. It can completely crush straw and root stubble even under high-speed operation, its stubble cleaning and soil crushing efficiency is far higher than ordinary disc harrows, serving as the practical core farm tool for time-sensitive stubble cleaning after corn, wheat and other crops harvest.

BDL Series High-Speed Stubble Disc Harrow – Full Product Description

The BDL Series High-Speed Stubble Disc Harrow is a special high-speed stubble cleaning equipment developed for farmland after harvest with large amount of straw residue. It provides standard working width options from 1.4m to 2.4m, perfectly compatible with tractors in 35-80HP power range. It specifically solves the pain points of ordinary disc harrows such as easy straw winding, incomplete stubble crushing and low operation speed, and is a cost-effective sharp tool to quickly complete stubble cleaning after busy harvest season.

0-45° Ultra-Wide Adjustable Angle for Full Scenario Stubble Cleaning
The working angle of the disc group supports stepless adjustment in a wide range from 0° to 45°. Small angle mode focuses on fine soil crushing, while large angle mode can firmly grab and crush long straw and high root stubble. Even on plots full of long straw after corn harvest, there will be no problems such as straw winding on disc shaft or soil clogging. One single machine can flexibly meet the operation demands of different crop stubble plots such as wheat stubble, corn stubble and cotton stubble.
Far Higher Operation Efficiency Than Ordinary Disc Harrows
Equipped with standard 460mm high wear-resistant notched special stubble-cleaning discs, it delivers extremely strong soil penetration and cutting capacity. The operating speed can easily reach 8-12km/h, which is more than 2 times the speed of ordinary light disc harrows. The qualified rate of stubble crushing exceeds 90%, its daily operation volume is far higher than ordinary harrows of the same working width, and it has extremely strong ability to seize farming time, which is especially suitable for completing large-area stubble cleaning in a short time during busy farming season.
Type II Three Point Mounting with Excellent Compatibility
It adopts standard Type II three-point hitch connection mode, the vast majority of mainstream tractors in 35-80HP power range can be directly mounted without extra modification of hitch accessories. The gross weight is controlled between 340kg and 560kg, the lightweight frame will not cause extra burden on the tractor rear hitch, and it performs very flexibly in steering and transferring.
Sturdy & Durable with Extremely Low Maintenance Cost
The whole machine frame is welded with thickened square steel tubes, all load-bearing points are reinforced, the frame will not deform even under long-term high-speed operation. All discs and bearings are standard universal spare parts, daily field maintenance is simple and convenient, ordinary farmers can complete wearing part replacement by themselves, the long-term operation cost is very economical.

Typical Applications: Stubble cleaning and tillage after wheat harvest, straw crushing and returning after corn harvest, stubble cleaning on high stubble plots of cash crops, fast tillage in sandy loam areas, and low-cost high-efficiency stubble cleaning operations for small and medium farms.
