Ultra-Wide Rotary Mower

9GX/9GXZ Series Ultra-Wide Rotary Mower – Full Product Description

The 9GX/9GXZ Series Ultra-Wide Rotary Mower is the flagship high-efficiency mowing equipment developed for super-large connected operation scenarios. It covers full series ultra-wide cutting width options from 2.75m to 6m, perfectly compatible with high-horsepower tractors in 100HP to 220HP power range. It provides both three-point mounted and hydraulic trailed folding structure options, which completely solves the pain point that ordinary small mowers have too low operation efficiency and cannot catch up with farming season on 10,000-mu level large plots, serving as the exclusive high-efficiency sharp tool for large state pastures, airport maintenance and large-area wasteland obstacle clearing.

1. 6-Meter Ultra-Wide Width Maximizes Operation Efficiency
   The maximum 6m ultra-wide cutting width delivers up to over 30 mu hourly operation efficiency, which equals the working efficiency of 3 ordinary 2m mowers running at the same time. The mowing operation cycle on 10,000-mu connected pastures is directly shortened by 70%, which fully meets the extreme high-efficiency operation demand for catching up with farming season.
2. Dual Structure Options Adapt to Different Usage Scenarios
   The 2.75m and 3.5m mounted models are compatible with 100-120HP tractors, no extra trailed chassis is needed, users can start operation directly after three-point hitch connection with high flexibility. The 3.5m, 4.5m and 6m trailed folding models are compatible with 100-220HP tractors, the overall width after hydraulic folding is controlled within 3m, which fully meets the road legal transport standard, no disassembly is needed during transition, users can drive on public roads directly.
3. Full Heavy-Duty Reinforced Structure Never Breaks Under Long-Term Continuous Operation
   The whole machine body, blade disc and transmission system are all reinforced for super high horsepower heavy load. Even under long-term full-load operation cutting high-density tall weeds and thick shrubs, there will be no body deformation or gearbox overheating damage, which maximizes continuous operation reliability, and fully adapts to the high-intensity daily operation of more than 10 hours per day on large farms.

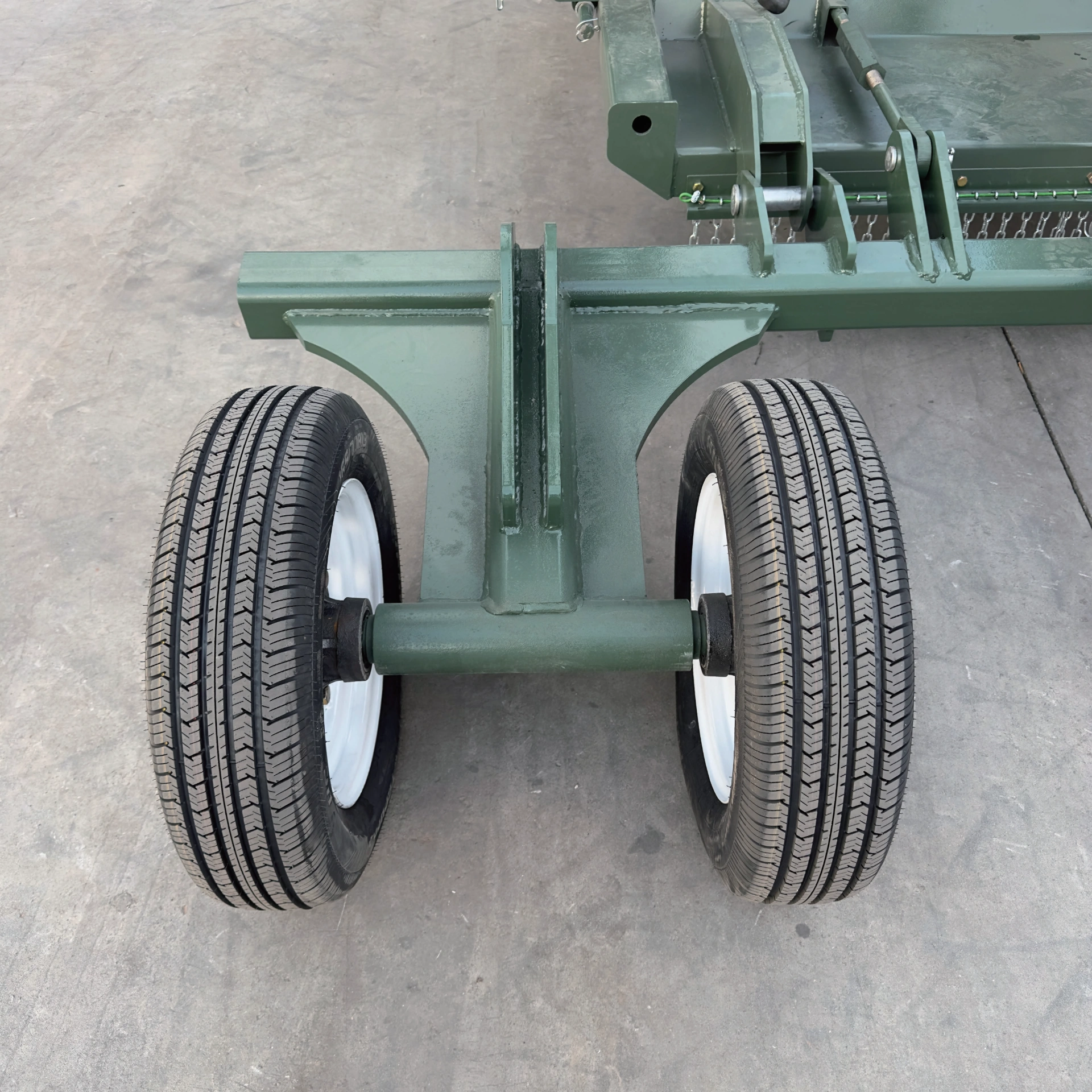

4. Multi-Wheel Floating Follow-Up System Ensures Stable Operation on Complex Terrain
   The full series is equipped with multiple sets of load-bearing guide wheels as standard. During operation, the machine body can automatically adjust the height following the ground undulation. Even on large-area uneven natural pastures and wasteland with small mounds, it can maintain a stable 100-300mm stubble height all the time, there will be no local missed cutting or blade scraping damage, which delivers extremely high operation consistency on large plots.

Typical Applications: Daily mowing maintenance for super-large state-owned 10,000-mu level pastures, large-area weed clearing around airport runways, large-area connected wasteland reclamation & obstacle clearing, overall weed clearing on large shrub lands, and ultra-large area green belt weed trimming along expressways.
