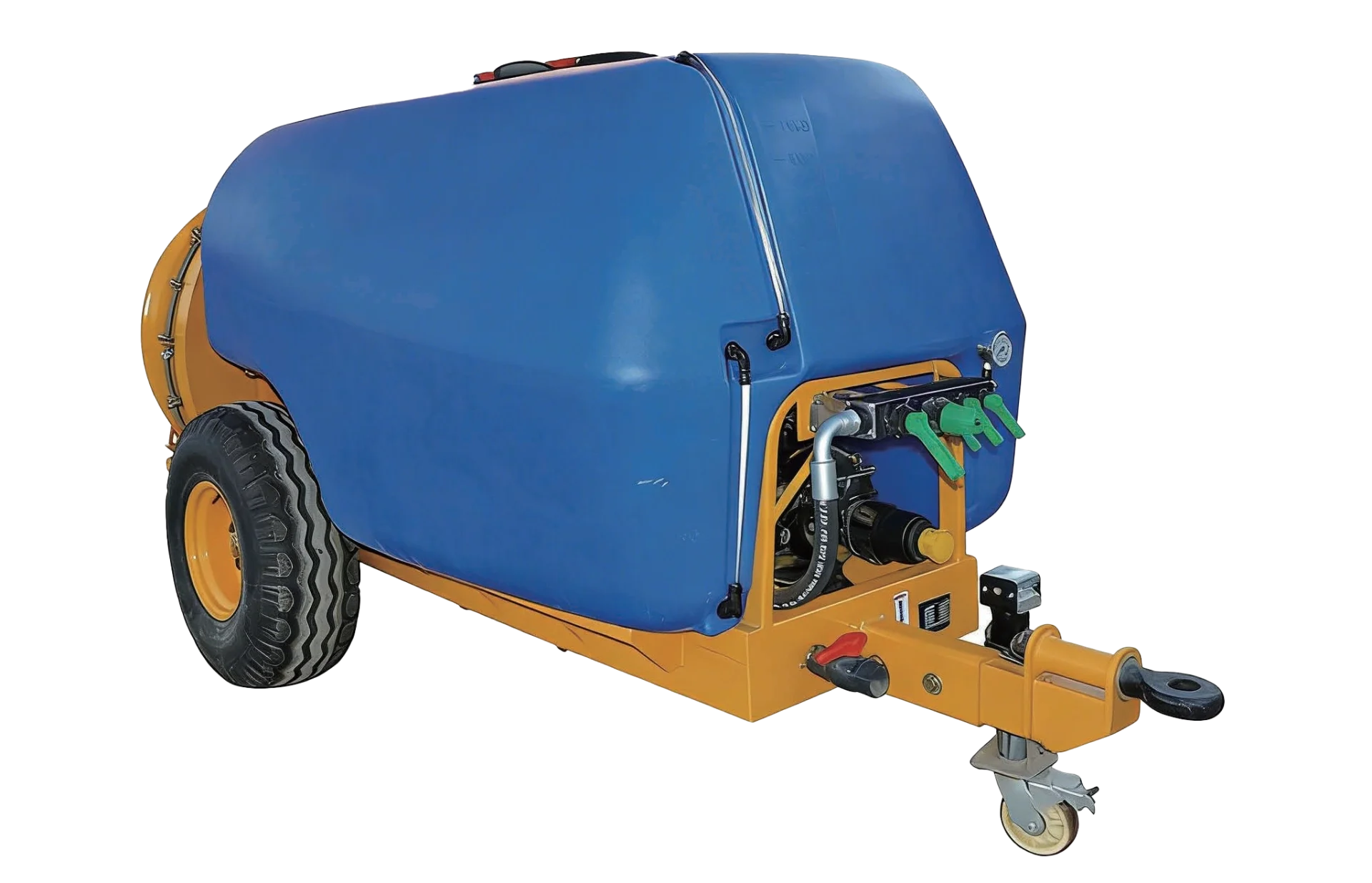

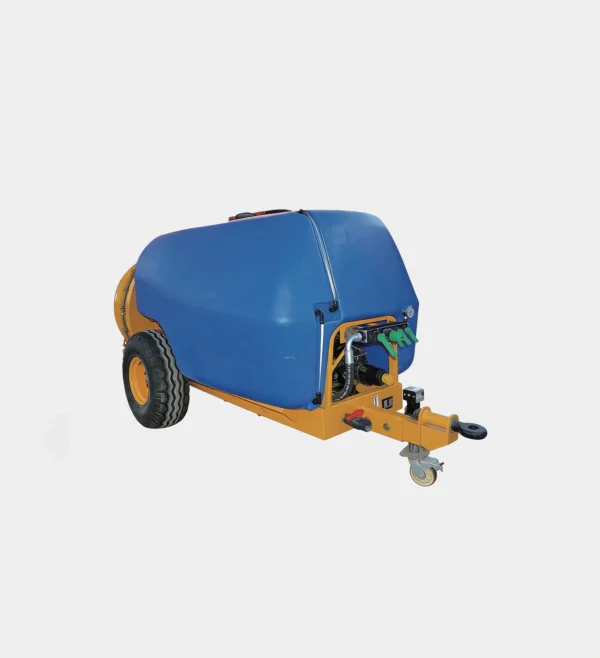

Trailed Large-Capacity Orchard Sprayer

3WFQ Series Trailed Orchard Sprayer – Full Product Description

The 3WFQ Series Trailed Large-Capacity Orchard Sprayer is flagship trailed air-assisted mist plant protection equipment developed for thousand-acre level contiguous large orchards. It covers all extra-large tank capacity configurations from 800L to 2000L, perfectly compatible with tractors above 50HP for traction operation. Adopting high-flow high-wind-pressure axial fan, the maximum air delivery distance can reach 22m. The high-flow diaphragm pump continuously and stably outputs large flow liquid medicine. After filling the tank once, it can operate continuously for several hours without returning to the filling station repeatedly, serving as the efficiency artifact for large-scale orchards to seize the pest control window period and complete the whole orchard plant protection operation in a short time.

20-22m Ultra-Long Air Delivery Covers Full Canopy of Tall Tree Orchards
The high-speed airflow output by the large-diameter high-flow axial fan can accurately blow mist droplets to a distance of 22m. Even in tall arbor orchards and contiguous cash forests with tree height over 10m, the mist droplets can completely penetrate the whole canopy of the big tree, all branches and leaves from tree top to trunk bottom can be evenly covered by liquid medicine, the pest and disease control effect of tall fruit trees is also maximized.
800-2000L Extra-Large Tank Reduces Round-Trip Filling Times
The maximum 2000L extra-large capacity tank can operate continuously on dozens of acres of land after filling liquid medicine once. There is no need to frequently travel back to the filling station at orchard entrance for refilling like small-capacity mounted sprayers, the invalid transit time is drastically reduced, the actual operation efficiency per unit time is directly doubled. When carrying out concentrated spraying operations on thousand-acre level orchards, the whole plot operation can be quickly completed within the best pest control window period.
Trailed Independent Chassis Does Not Occupy Tractor Rear Hitch
The whole machine comes with independent traction chassis and walking tires. The tractor only needs to drag the whole machine forward through the traction hitch point, it does not occupy the hydraulic lifting resources of the tractor rear hitch at all. The tractor rear hitch can also mount other matching implements for synchronous operation. The traction driving stability of the whole machine is extremely strong, even when driving on undulating mountain plots in orchards, there will be no bumping and rollover problems.
High-Flow Diaphragm Pump Delivers Large Flow Output and Maximizes Operation Efficiency
The full series is equipped with high-flow diaphragm pump, the maximum rated flow can reach 140L/min, the liquid medicine output flow is far higher than ordinary small orchard sprayers. The total amount of liquid medicine sprayed per unit time is drastically increased, the spraying operation traveling speed can be maintained at a very high level, the overall operation efficiency of large contiguous orchards is several times higher than small models.
Thickened Anti-Corrosion Treatment on Whole Machine Delivers Extremely Long Service Life
All wetted parts including tank, pipelines and pump flow components are treated with thickened acid and alkali anti-corrosion, the whole traction chassis is treated with plastic spray anti-rust. Even under years of full-load operation in high humidity and high corrosion working conditions in orchards, the whole machine will never have corrosion or leakage problems, the overall design service life is several times longer than ordinary small orchard sprayers.

Typical Applications: Concentrated plant protection spraying operations on thousand-acre level contiguous large orchards, insect control spraying operations on tall arbor cash forests, pest and disease control operations on large-area apple, citrus and other large-scale orchards, seizing farming season to complete whole orchard spraying in short time, and high-efficiency plant protection operations on contiguous orchards in hilly and mountainous areas.
