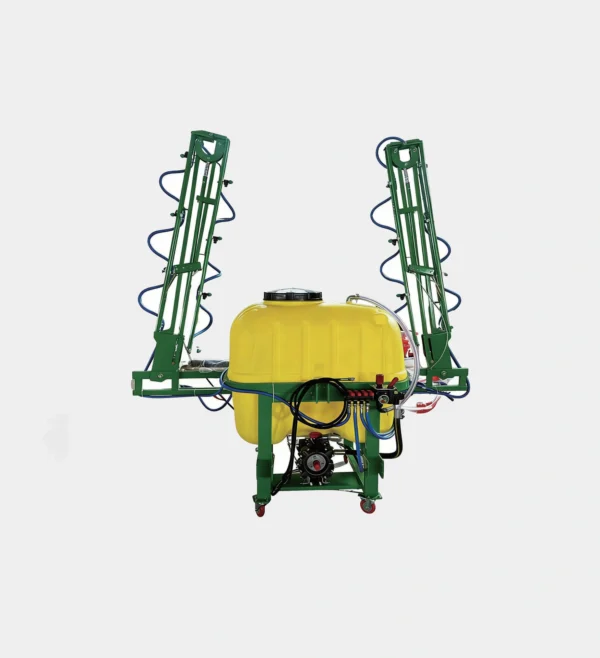

Mounted Boom Sprayer

Mounted Boom Sprayer

3W Series Mounted Boom Sprayer is universal field spraying equipment compatible with wheeled tractors, with large tank capacity options from 400L to 1000L and 6m to 12m folding spray boom. Adopting anti-corrosion pipelines and double-cylinder diaphragm pump, it delivers even atomization with anti-drip function and high operation efficiency, perfectly suitable for large-area plant protection spraying scenarios such as field crops and lawns, serving as the high cost-performance main model for low-cost high-efficiency plant protection operations on small and medium farms.

Category:

3W Series Mounted Boom Sprayer - Full Product Description The 3W Series Mounted Boom Sprayer is universal mounted plant protection spraying equipment developed for small and medium farms across the world. It covers all mainstream tank capacity from 400L to 1000L, perfectly compatible with the rear three-point hitch interface of conventional wheeled tractors. During operation, it is fully driven by the tractor power take-off shaft, no extra independent power source is needed. After the folding spray boom is fully unfolded, it can reach maximum 12m ultra-wide spray width, one single field pass can complete uniform spraying over 12m width, serving as the entry-level high cost-performance preferred implement for field crop weeding, insecticidal and fungicidal plant protection operations.Double-Cylinder Diaphragm Pump Delivers Stable Pressure and Even Fine Atomization The core pump body adopts double-cylinder diaphragm pump, the output liquid pressure is fully stable without fluctuation. After the liquid is sprayed out through anti-drip combined nozzles, the atomized droplets are extremely even and fine, there will be no large droplets directly falling to the ground. The liquid medicine can evenly attach to both sides of crop leaves, the pesticide utilization rate is drastically improved, the plant protection effect is better under the same pesticide dosage.Full Anti-Corrosion Pipelines Resist All Kinds of Pesticides Without Corrosion For Years All pipelines and valves in contact with liquid medicine are made of special pesticide-resistant plastic and anti-corrosion rubber materials. Even if strong acid and strong alkaline herbicides and pesticides circulate in the pipelines for a long time, there will be no problems such as pipeline corrosion leakage or liquid medicine contamination and deterioration, the overall service life is far longer than ordinary iron pipe sprayers.Folding Spray Boom Delivers Flexible Transit and Excellent Trafficability The spray boom adopts foldable structure. During spraying operation, it is fully unfolded to get maximum spray width. During transit transportation, the two side spray booms are folded upwards and stowed, the overall machine width is drastically reduced. When passing on country roads and between crop rows, it will never scrape roadside crops and trees, the transit movement is extremely flexible and convenient.Anti-Drip Nozzles Stop Dropping Immediately to Avoid Phytotoxicity All nozzles are equipped with combined anti-drip structure. After closing the spraying valve, the nozzles stop dripping liquid immediately, there will be no problem that residual liquid keeps dripping after the pump is shut off on ordinary nozzles. It completely avoids the phytotoxicity problem that the crops under the machine are burned by continuously dripping high-concentration pesticide when the sprayer stops in the middle of the plot for waiting.Wide Compatibility and Low Threshold, Existing Tractors Can Hitch It Directly The whole machine adopts standard three-point hitch interface, the vast majority of ordinary wheeled tractors across the world can be directly hitched to the power take-off shaft and start operation without any modification. No extra special power chassis is needed, small and medium farms can complete standardized high-efficiency plant protection operations with extremely low threshold.Typical Applications: Weeding and insecticidal spraying operations for field crops such as wheat, corn and soybean, large-area lawn maintenance spraying operations, seedling stage plant protection spraying operations for cash crops, low-cost daily plant protection operations for small and medium farms, and high-efficiency spraying operations on contiguous plots.

3W Series Mounted Boom Sprayer – Full Product Description

The 3W Series Mounted Boom Sprayer is universal mounted plant protection spraying equipment developed for small and medium farms across the world. It covers all mainstream tank capacity from 400L to 1000L, perfectly compatible with the rear three-point hitch interface of conventional wheeled tractors. During operation, it is fully driven by the tractor power take-off shaft, no extra independent power source is needed. After the folding spray boom is fully unfolded, it can reach maximum 12m ultra-wide spray width, one single field pass can complete uniform spraying over 12m width, serving as the entry-level high cost-performance preferred implement for field crop weeding, insecticidal and fungicidal plant protection operations.

  1. Double-Cylinder Diaphragm Pump Delivers Stable Pressure and Even Fine Atomization
    The core pump body adopts double-cylinder diaphragm pump, the output liquid pressure is fully stable without fluctuation. After the liquid is sprayed out through anti-drip combined nozzles, the atomized droplets are extremely even and fine, there will be no large droplets directly falling to the ground. The liquid medicine can evenly attach to both sides of crop leaves, the pesticide utilization rate is drastically improved, the plant protection effect is better under the same pesticide dosage.
  2. Full Anti-Corrosion Pipelines Resist All Kinds of Pesticides Without Corrosion For Years
    All pipelines and valves in contact with liquid medicine are made of special pesticide-resistant plastic and anti-corrosion rubber materials. Even if strong acid and strong alkaline herbicides and pesticides circulate in the pipelines for a long time, there will be no problems such as pipeline corrosion leakage or liquid medicine contamination and deterioration, the overall service life is far longer than ordinary iron pipe sprayers.
  3. Folding Spray Boom Delivers Flexible Transit and Excellent Trafficability

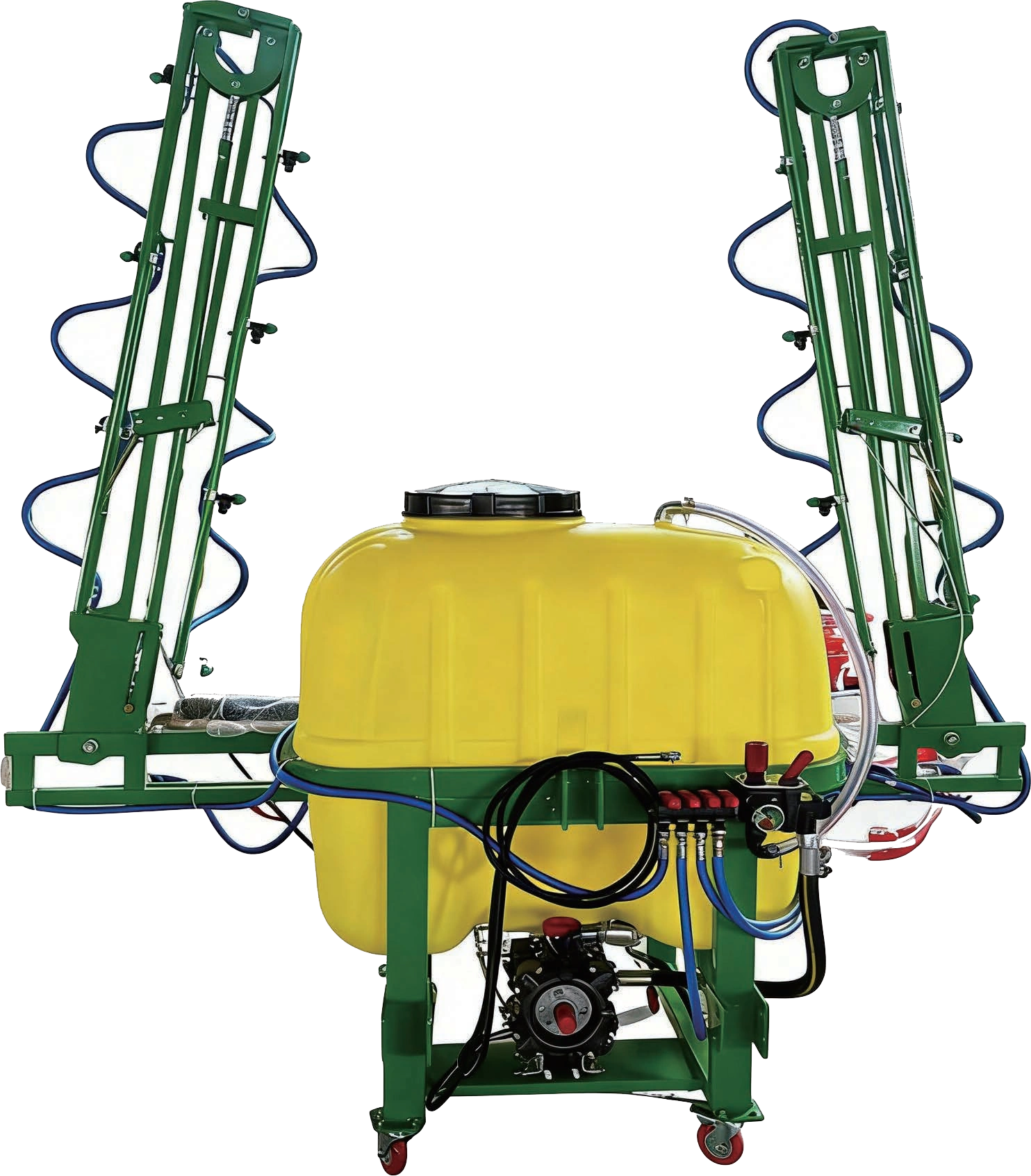

    The spray boom adopts foldable structure. During spraying operation, it is fully unfolded to get maximum spray width. During transit transportation, the two side spray booms are folded upwards and stowed, the overall machine width is drastically reduced. When passing on country roads and between crop rows, it will never scrape roadside crops and trees, the transit movement is extremely flexible and convenient.
  4. Anti-Drip Nozzles Stop Dropping Immediately to Avoid Phytotoxicity
    All nozzles are equipped with combined anti-drip structure. After closing the spraying valve, the nozzles stop dripping liquid immediately, there will be no problem that residual liquid keeps dripping after the pump is shut off on ordinary nozzles. It completely avoids the phytotoxicity problem that the crops under the machine are burned by continuously dripping high-concentration pesticide when the sprayer stops in the middle of the plot for waiting.
  5. Wide Compatibility and Low Threshold, Existing Tractors Can Hitch It Directly
    The whole machine adopts standard three-point hitch interface, the vast majority of ordinary wheeled tractors across the world can be directly hitched to the power take-off shaft and start operation without any modification. No extra special power chassis is needed, small and medium farms can complete standardized high-efficiency plant protection operations with extremely low threshold.

Typical Applications: Weeding and insecticidal spraying operations for field crops such as wheat, corn and soybean, large-area lawn maintenance spraying operations, seedling stage plant protection spraying operations for cash crops, low-cost daily plant protection operations for small and medium farms, and high-efficiency spraying operations on contiguous plots.
