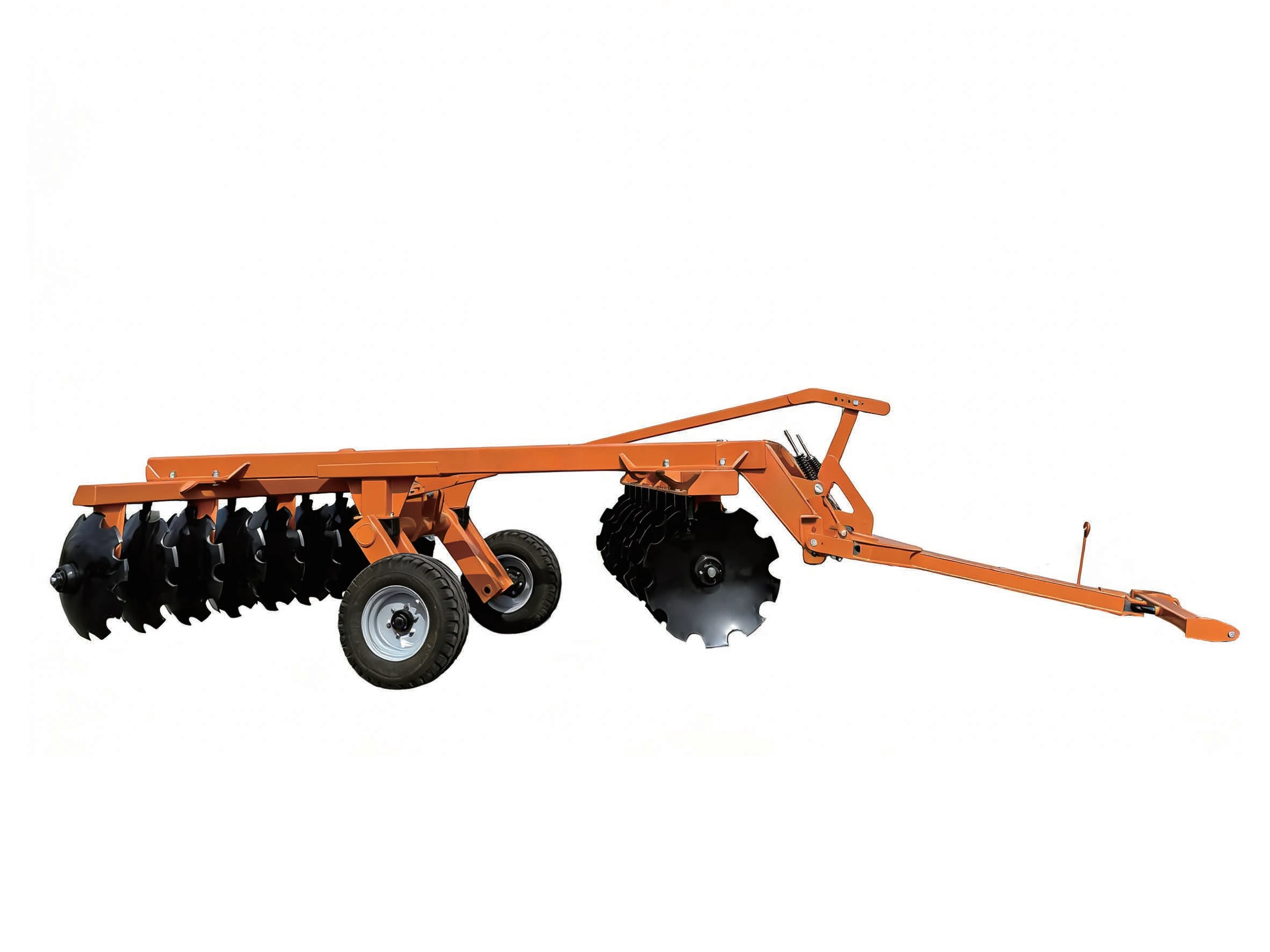

Heavy Reclamation Disc Harrow

1BZ(A) Series Heavy Reclamation Disc Harrow is a heavy-duty tillage equipment purpose-built for virgin land reclamation, with maximum working depth up to 350mm. Equipped with extra-large thickened wear-resistant discs, compatible with 140-260HP high-horsepower tractors, it directly cuts through uncultivated wasteland and compacted hardpan, serving as the core dedicated machine for large-scale land reclamation.

1BZ(A) Series Heavy Reclamation Disc Harrow – Full Product Description

The 1BZ(A) Series Heavy Reclamation Disc Harrow is an ultra-heavy duty tillage equipment specially developed for extreme operation scenarios such as virgin land reclamation, grassland renewal and hardpan breaking. It offers 7 working width options from 2.8m to 6.0m, perfectly compatible with high-horsepower tractors in 140-260HP range, and is the benchmark disc harrow with the strongest reclamation capacity in the current domestic market.

Overwhelming Wasteland Breaking Performance
Equipped with 910mm extra-large thickened wear-resistant discs and 65mm diameter super heavy-duty disc axle, the working angle can be flexibly adjusted between 17° and 23°, which stably delivers an extreme working depth of 200-350mm. Even years of uncultivated virgin land, compacted chernozem and wasteland tangled with shrub roots can be directly cut through in one pass without pre-treatment, its operation efficiency is far higher than ordinary heavy-duty disc harrows.
Full Heavy-Duty Reinforced Structure
The whole machine adopts extra-thick high-strength engineering frame, all load-bearing components have passed flaw detection and reinforcement treatment. The maximum gross weight reaches 6700kg, which will not cause frame deformation or disc axle fracture even when working on hard soil under full load, delivering maximum long-term reliability under extremely harsh working conditions.
Full Product Line Covers All Scales of Demands
The full series meets all demands from small-area partial reclamation to ten-thousand-acre connected land reclamation. Small-width models handle scattered wasteland plots flexibly, while the 6m extra-wide model can complete dozens of acres of tillage per hour, perfectly matching large-scale connected reclamation operations of large agricultural bases and land development projects.
Stable & Reliable Heavy Traction Performance
The trailed structure is equipped with large-size European-style wide tires, with excellent load-bearing capacity. It travels smoothly even on undeveloped wild unpaved roads without getting stuck or slipping, and delivers extremely strong stability for long-time continuous high-intensity operation, which greatly reduces the overall operation cost of large-scale reclamation projects.

Typical Applications: Connected virgin land reclamation, degraded grassland farmland renewal, land reclamation after forest logging, deep breaking of heavily compacted saline-alkali land, and stubble cleaning on shrub wasteland.
