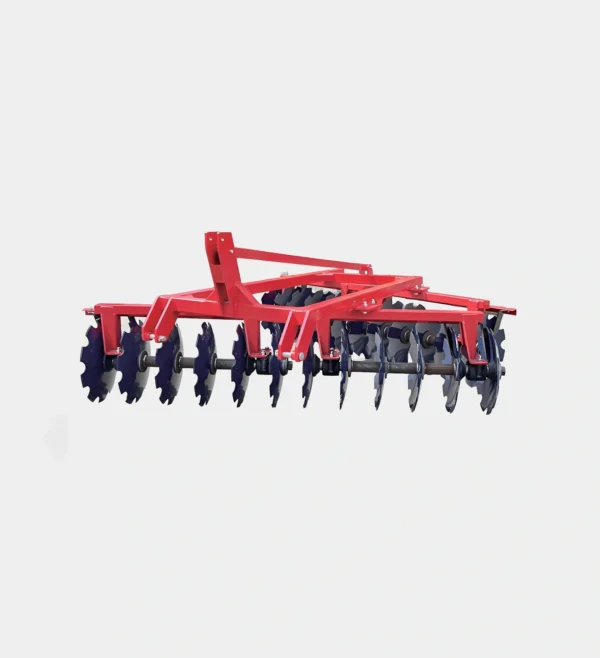

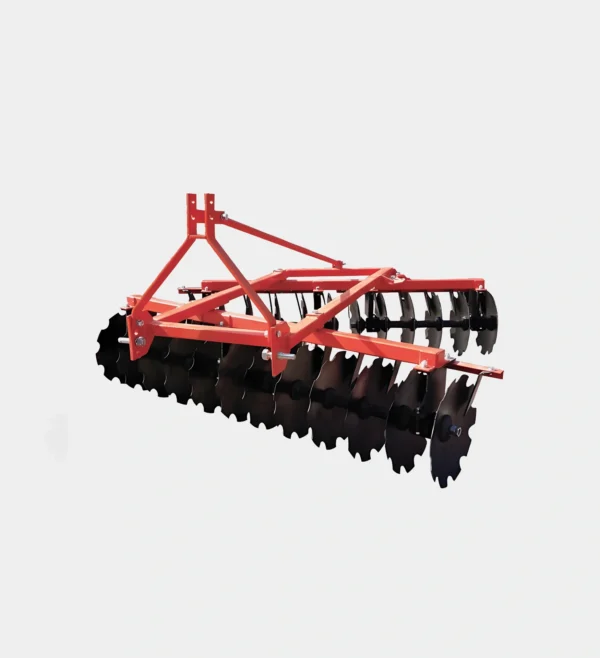

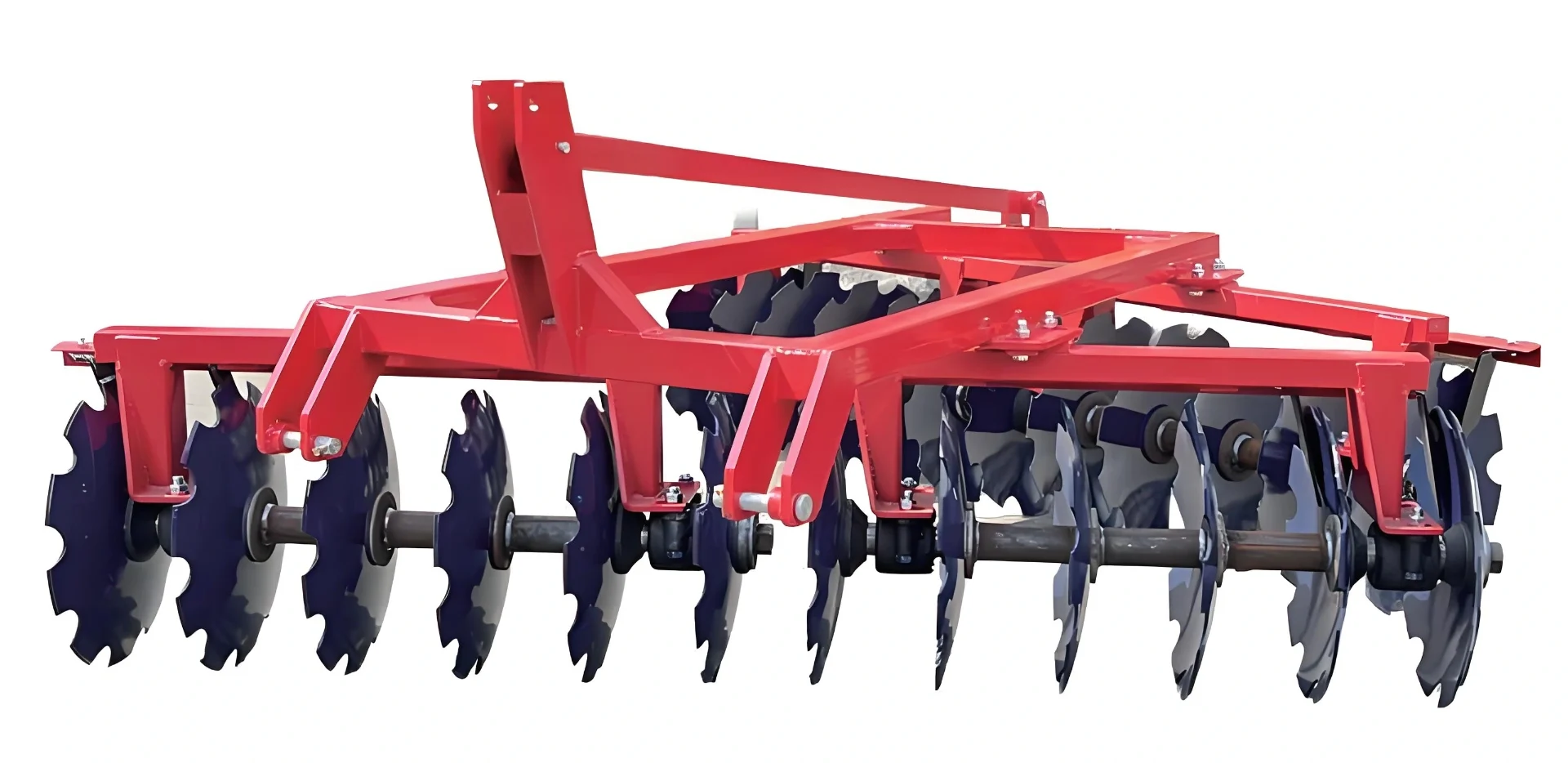

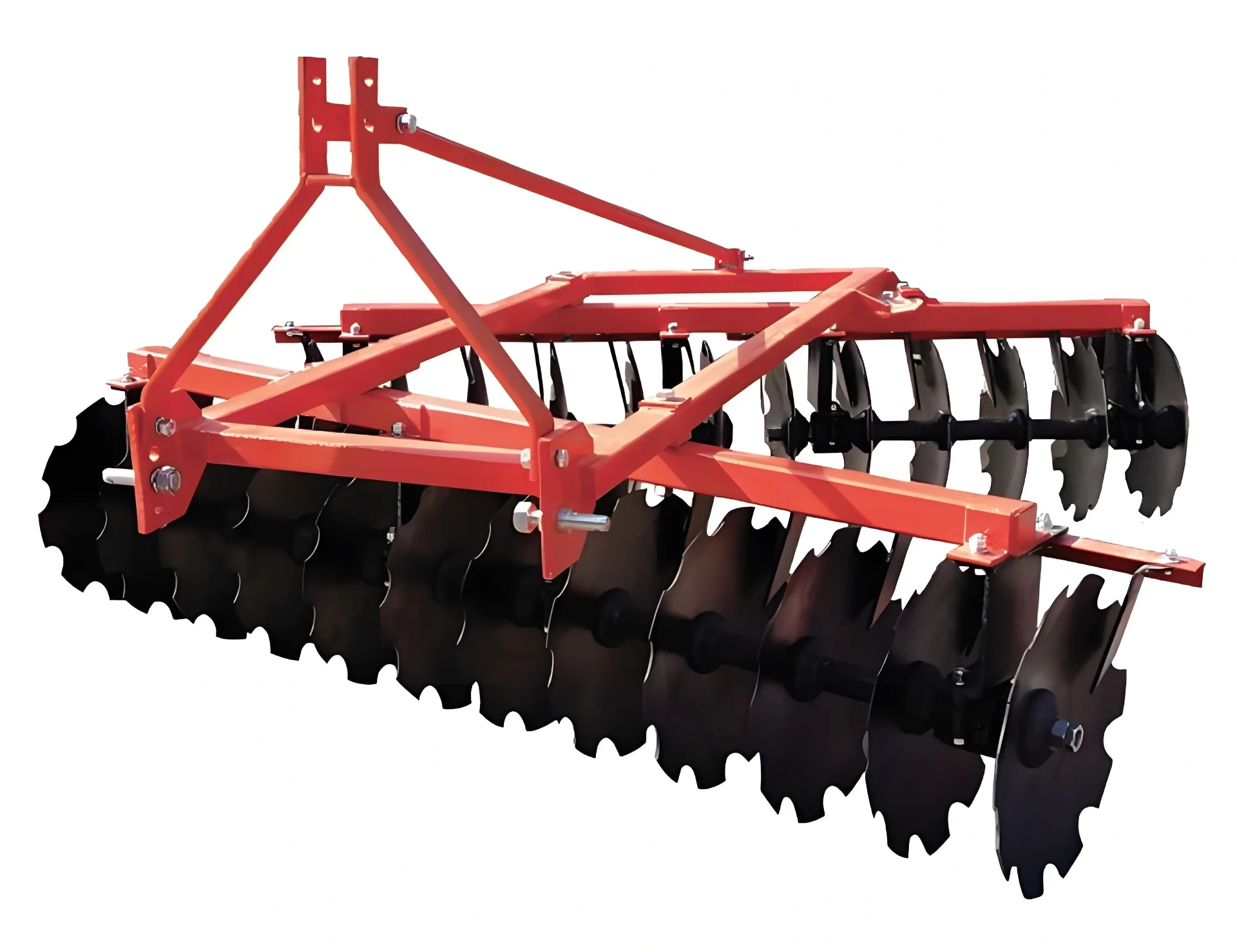

1BJX Series Mounted Medium-Duty Disc Harrow

1BJX Series Mounted Medium-Duty Disc Harrow – Full Product Description

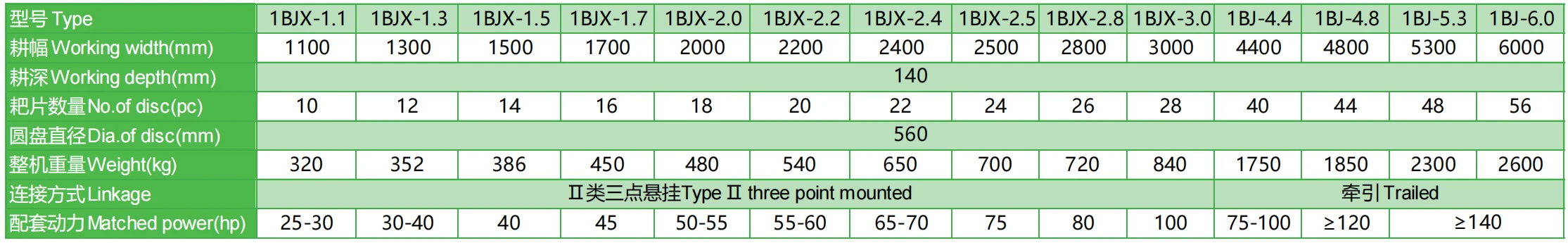

The 1BJX Series Mounted Medium-Duty Disc Harrow is a versatile tillage equipment optimized for medium horsepower tractors. It provides full working width options from 1.1m to 6.0m, compatible with mainstream tractors in 25-140HP power range. It fills the market gap that light-duty harrows lack sufficient operation strength while heavy-duty harrows have too high power requirement, and serves as a highly universal mid-range core tillage equipment.

1. Full Compatibility with Standard Type II 3-Point Hitch
   The full series adopts the industry standard Type II 3-point hitch interface, almost all wheeled tractors above 25HP in the market can connect it directly without extra modification. After hooking up, the tractor hydraulic system can directly control the whole machine lifting, with zero operation learning curve.
2. Perfect Balance Between Strength & Maneuverability
   Equipped with standard 560mm diameter medium high wear-resistant discs, it stably delivers 140mm working depth. It will not fail to penetrate slightly compacted soil like light-duty harrows, and does not require extra-large horsepower tractors to drive like heavy-duty harrows. Ordinary medium horsepower tractors can easily operate it under full load, with even soil crushing and far better tillage quality than light disc harrows.
3. Compact Sturdy Structure & Low Maintenance Cost
   The whole machine adopts compact reinforced frame design, which guarantees structural rigidity while controlling overall weight. It will not deform even under full load operation. All rotating parts are standard universal spare parts, daily maintenance is simple and convenient without complex professional operations, delivering extremely low long-term failure rate.
4. Exceptional All-Scenario Adaptability
   The full product line covers from small working width to extra-large working width. Small models handle hilly plots, orchard tillage and vegetable farm operations flexibly, while large-width models also meet conventional tillage demands of connected large farmland. It transfers very flexibly without extra transport vehicles, and delivers high efficiency when moving between different plots.

Typical Applications: Pre-sowing tillage for ordinary farmland, soil crushing and stubble cleaning in cash crop planting areas, connected operation on medium-sized hilly plots, orchard grassland renewal, and annual conventional tillage operations for small and medium farms.
