Subsoiling Combined Land Preparation Machine

Subsoiling Combined Land Preparation Machine

Subsoiling Combined Land Preparation Machine is a deep-tillage compound tillage equipment, which adopts the combined structure of front subsoiler shanks and rear disc harrow, compatible with tractors above 120HP. It delivers maximum working depth up to 450mm, with thickened heavy-duty sturdy structure. It can break the plow pan to improve soil permeability and moisture retention, serving as the core high-end farm machine for conservation tillage scenarios to boost crop yield.

Category:

Subsoiling Combined Land Preparation Machine - Full Product Description This Subsoiling Combined Land Preparation Machine is a high-end compound tillage equipment purpose-built for breaking plow pan and deep soil improvement. It provides standard working width options from 2.5m to 3.45m, compatible with tractors above 120HP. It integrates two processes of deep subsoiling and topsoil leveling into one single machine, completely solves the industry pain points of hard plow pan and poor soil permeability caused by years of continuous rotary tillage, and serves as the flagship equipment for conservation tillage on high-standard farmland.Front Subsoiler + Rear Harrow Design, Finish Subsoiling & Tillage in One Pass The front part of the machine is equipped with high-strength subsoiler shanks, which can directly penetrate 350-450mm underground and completely break the hard plow pan formed by years of farming. The rear part is matched with 460mm high wear-resistant disc harrow group, which completes topsoil crushing and leveling simultaneously. It finishes both subsoiling and tillage in one field entry, eliminates the problem that extra large soil clods are left after subsoiling which requires secondary tillage, and drastically saves operation time and fuel cost.Thickened Heavy-Duty Structure with Ultra-High Reliability The main girder of the whole machine is integrally welded with 100mm100mm8mm thickened square steel tube. All connection points of subsoiler shanks and discs are reinforced for heavy load. Even under long-term full load operation on compacted hard plots and stony fields, there will be no shank deformation or frame crack, the overall durability is far better than ordinary subsoiling equipment.Multiple Precise Models to Meet Different Operation Demands The 3 models of the full series are equipped with 7, 9 and 11 subsoiler shanks respectively, the working width increases gradually from 2.5m to 3.45m, which accurately matches high-horsepower tractors in different power segments of 120-180HP and above 200HP. The subsoiler shanks are arranged with reasonable spacing, which forms uniform loose layer underground after operation without subsoiling blind spots, the soil permeability and water permeability are greatly improved, and the moisture retention and drought resistance performance is remarkable.Conservation Tillage Helps Long-Term Yield Increase Subsoiling operation does not turn over the soil layer and will not disturb the original soil tillage structure. It also mixes crop stubble and organic fertilizer into deep soil better to continuously improve soil fertility. After operation, rainwater infiltration speed increases several times, and soil water retention capacity is greatly enhanced in dry seasons. After 2-3 consecutive years of use, you can clearly observe that crop roots grow deeper, drought resistance and lodging resistance are improved, and it delivers remarkable long-term stable yield and yield increase effect.Typical Applications: Subsoiling conservation tillage in northeast China black soil region, plow pan breaking on years of rotary tilled fields, moisture retention tillage in arid and semi-arid areas, deep soil improvement for high-standard farmland, and farmland soil fertility restoration operations for large-scale farms.

Subsoiling Combined Land Preparation Machine - Full Product Description This Subsoiling Combined Land Preparation Machine is a high-end compound tillage equipment purpose-built for breaking plow pan and deep soil improvement. It provides standard working width options from 2.5m to 3.45m, compatible with tractors above 120HP. It integrates two processes of deep subsoiling and topsoil leveling into one single machine, completely solves the industry pain points of hard plow pan and poor soil permeability caused by years of continuous rotary tillage, and serves as the flagship equipment for conservation tillage on high-standard farmland. Front Subsoiler + Rear Harrow Design, Finish Subsoiling & Tillage in One Pass The front part of the machine is equipped with high-strength subsoiler shanks, which can directly penetrate 350-450mm underground and completely break the hard plow pan formed by years of farming. The rear part is matched with 460mm high wear-resistant disc harrow group, which completes topsoil crushing and leveling simultaneously. It finishes both subsoiling and tillage in one field entry, eliminates the problem that extra large soil clods are left after subsoiling which requires secondary tillage, and drastically saves operation time and fuel cost. Thickened Heavy-Duty Structure with Ultra-High Reliability The main girder of the whole machine is integrally welded with 100mm100mm8mm thickened square steel tube. All connection points of subsoiler shanks and discs are reinforced for heavy load. Even under long-term full load operation on compacted hard plots and stony fields, there will be no shank deformation or frame crack, the overall durability is far better than ordinary subsoiling equipment. Multiple Precise Models to Meet Different Operation Demands The 3 models of the full series are equipped with 7, 9 and 11 subsoiler shanks respectively, the working width increases gradually from 2.5m to 3.45m, which accurately matches high-horsepower tractors in different power segments of 120-180HP and above 200HP. The subsoiler shanks are arranged with reasonable spacing, which forms uniform loose layer underground after operation without subsoiling blind spots, the soil permeability and water permeability are greatly improved, and the moisture retention and drought resistance performance is remarkable. Conservation Tillage Helps Long-Term Yield Increase Subsoiling operation does not turn over the soil layer and will not disturb the original soil tillage structure. It also mixes crop stubble and organic fertilizer into deep soil better to continuously improve soil fertility. After operation, rainwater infiltration speed increases several times, and soil water retention capacity is greatly enhanced in dry seasons. After 2-3 consecutive years of use, you can clearly observe that crop roots grow deeper, drought resistance and lodging resistance are improved, and it delivers remarkable long-term stable yield and yield increase effect. Typical Applications: Subsoiling conservation tillage in northeast China black soil region, plow pan breaking on years of rotary tilled fields, moisture retention tillage in arid and semi-arid areas, deep soil improvement for high-standard farmland, and farmland soil fertility restoration operations for large-scale farms.

Subsoiling Combined Land Preparation Machine - Full Product Description This Subsoiling Combined Land Preparation Machine is a high-end compound tillage equipment purpose-built for breaking plow pan and deep soil improvement. It provides standard working width options from 2.5m to 3.45m, compatible with tractors above 120HP. It integrates two processes of deep subsoiling and topsoil leveling into one single machine, completely solves the industry pain points of hard plow pan and poor soil permeability caused by years of continuous rotary tillage, and serves as the flagship equipment for conservation tillage on high-standard farmland. Front Subsoiler + Rear Harrow Design, Finish Subsoiling & Tillage in One Pass The front part of the machine is equipped with high-strength subsoiler shanks, which can directly penetrate 350-450mm underground and completely break the hard plow pan formed by years of farming. The rear part is matched with 460mm high wear-resistant disc harrow group, which completes topsoil crushing and leveling simultaneously. It finishes both subsoiling and tillage in one field entry, eliminates the problem that extra large soil clods are left after subsoiling which requires secondary tillage, and drastically saves operation time and fuel cost. Thickened Heavy-Duty Structure with Ultra-High Reliability The main girder of the whole machine is integrally welded with 100mm100mm8mm thickened square steel tube. All connection points of subsoiler shanks and discs are reinforced for heavy load. Even under long-term full load operation on compacted hard plots and stony fields, there will be no shank deformation or frame crack, the overall durability is far better than ordinary subsoiling equipment. Multiple Precise Models to Meet Different Operation Demands The 3 models of the full series are equipped with 7, 9 and 11 subsoiler shanks respectively, the working width increases gradually from 2.5m to 3.45m, which accurately matches high-horsepower tractors in different power segments of 120-180HP and above 200HP. The subsoiler shanks are arranged with reasonable spacing, which forms uniform loose layer underground after operation without subsoiling blind spots, the soil permeability and water permeability are greatly improved, and the moisture retention and drought resistance performance is remarkable. Conservation Tillage Helps Long-Term Yield Increase Subsoiling operation does not turn over the soil layer and will not disturb the original soil tillage structure. It also mixes crop stubble and organic fertilizer into deep soil better to continuously improve soil fertility. After operation, rainwater infiltration speed increases several times, and soil water retention capacity is greatly enhanced in dry seasons. After 2-3 consecutive years of use, you can clearly observe that crop roots grow deeper, drought resistance and lodging resistance are improved, and it delivers remarkable long-term stable yield and yield increase effect. Typical Applications: Subsoiling conservation tillage in northeast China black soil region, plow pan breaking on years of rotary tilled fields, moisture retention tillage in arid and semi-arid areas, deep soil improvement for high-standard farmland, and farmland soil fertility restoration operations for large-scale farms.

Subsoiling Combined Land Preparation Machine – Full Product Description

This Subsoiling Combined Land Preparation Machine is a high-end compound tillage equipment purpose-built for breaking plow pan and deep soil improvement. It provides standard working width options from 2.5m to 3.45m, compatible with tractors above 120HP. It integrates two processes of deep subsoiling and topsoil leveling into one single machine, completely solves the industry pain points of hard plow pan and poor soil permeability caused by years of continuous rotary tillage, and serves as the flagship equipment for conservation tillage on high-standard farmland.

  1. Front Subsoiler + Rear Harrow Design, Finish Subsoiling & Tillage in One Pass

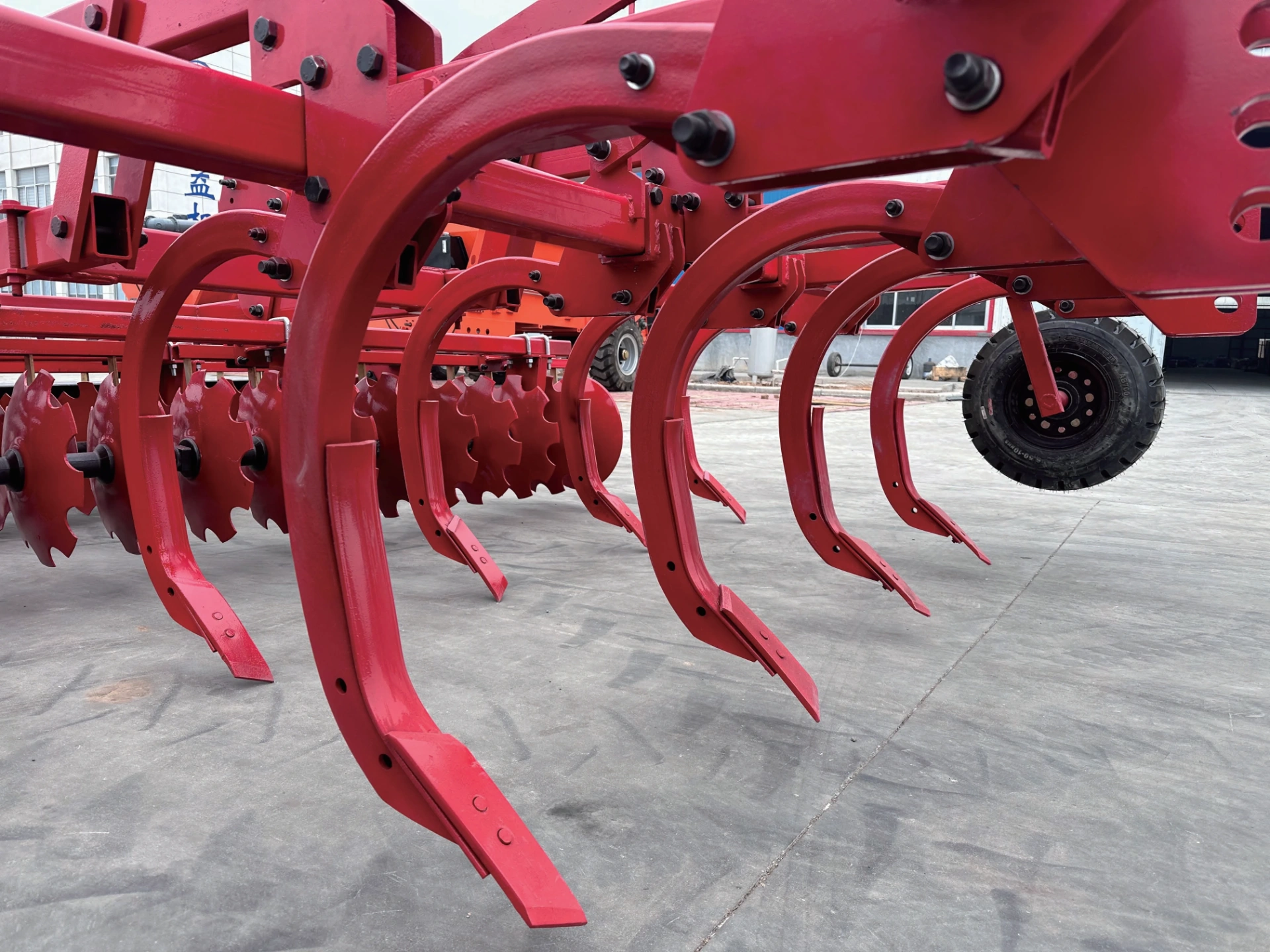

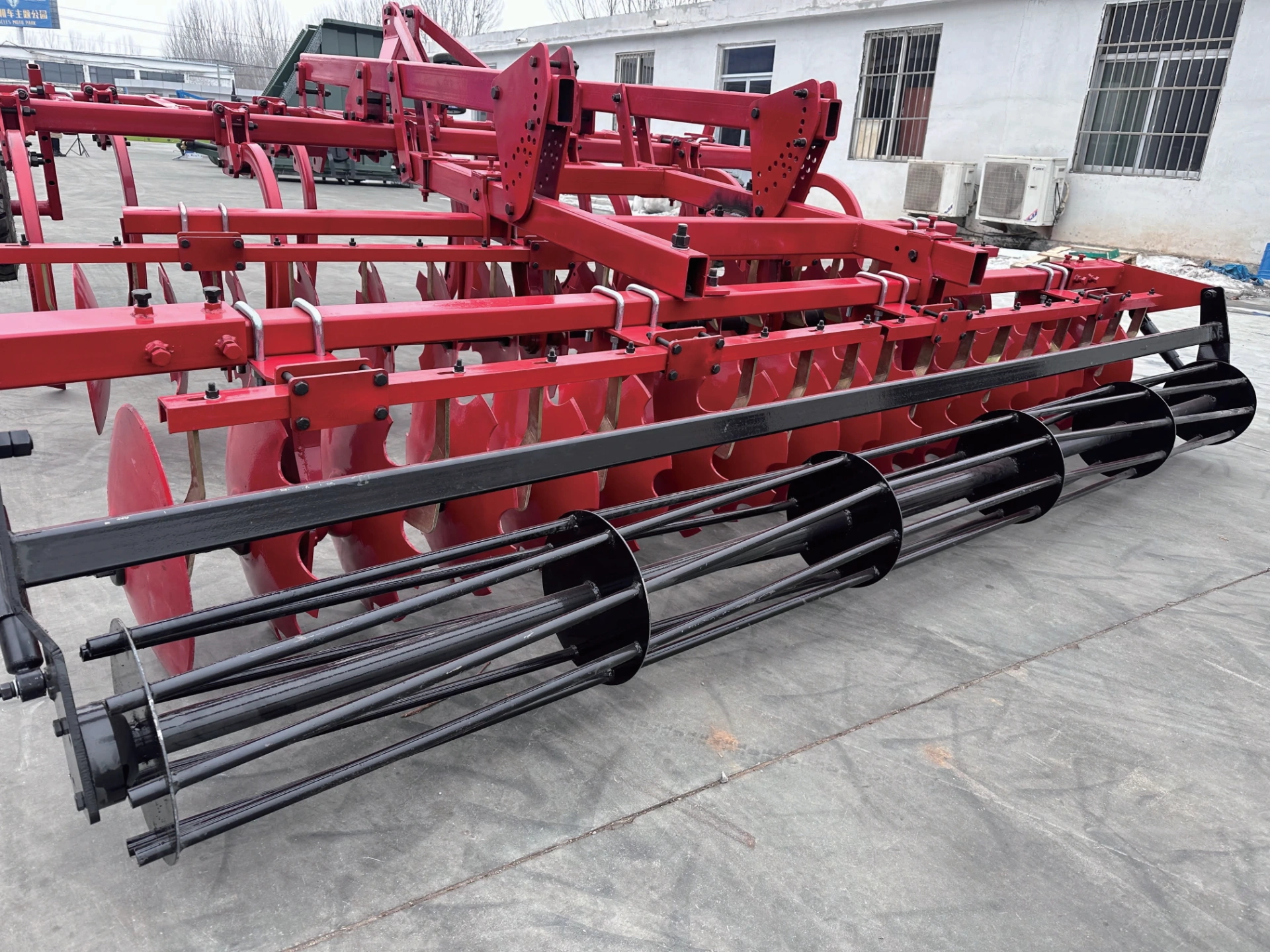

    The front part of the machine is equipped with high-strength subsoiler shanks, which can directly penetrate 350-450mm underground and completely break the hard plow pan formed by years of farming. The rear part is matched with 460mm high wear-resistant disc harrow group, which completes topsoil crushing and leveling simultaneously. It finishes both subsoiling and tillage in one field entry, eliminates the problem that extra large soil clods are left after subsoiling which requires secondary tillage, and drastically saves operation time and fuel cost.
  2. Thickened Heavy-Duty Structure with Ultra-High Reliability
    The main girder of the whole machine is integrally welded with 100mm100mm8mm thickened square steel tube. All connection points of subsoiler shanks and discs are reinforced for heavy load. Even under long-term full load operation on compacted hard plots and stony fields, there will be no shank deformation or frame crack, the overall durability is far better than ordinary subsoiling equipment.
  3. Multiple Precise Models to Meet Different Operation Demands
    The 3 models of the full series are equipped with 7, 9 and 11 subsoiler shanks respectively, the working width increases gradually from 2.5m to 3.45m, which accurately matches high-horsepower tractors in different power segments of 120-180HP and above 200HP. The subsoiler shanks are arranged with reasonable spacing, which forms uniform loose layer underground after operation without subsoiling blind spots, the soil permeability and water permeability are greatly improved, and the moisture retention and drought resistance performance is remarkable.
  4. Conservation Tillage Helps Long-Term Yield Increase
    Subsoiling operation does not turn over the soil layer and will not disturb the original soil tillage structure. It also mixes crop stubble and organic fertilizer into deep soil better to continuously improve soil fertility. After operation, rainwater infiltration speed increases several times, and soil water retention capacity is greatly enhanced in dry seasons. After 2-3 consecutive years of use, you can clearly observe that crop roots grow deeper, drought resistance and lodging resistance are improved, and it delivers remarkable long-term stable yield and yield increase effect.

Typical Applications: Subsoiling conservation tillage in northeast China black soil region, plow pan breaking on years of rotary tilled fields, moisture retention tillage in arid and semi-arid areas, deep soil improvement for high-standard farmland, and farmland soil fertility restoration operations for large-scale farms.
