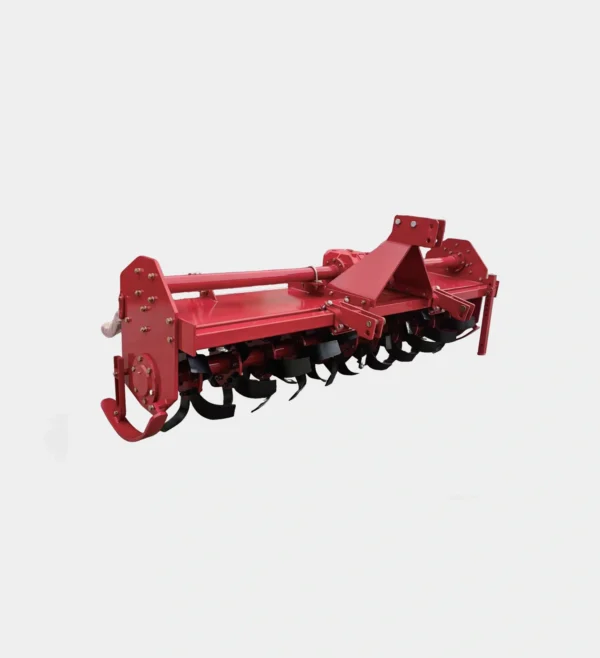

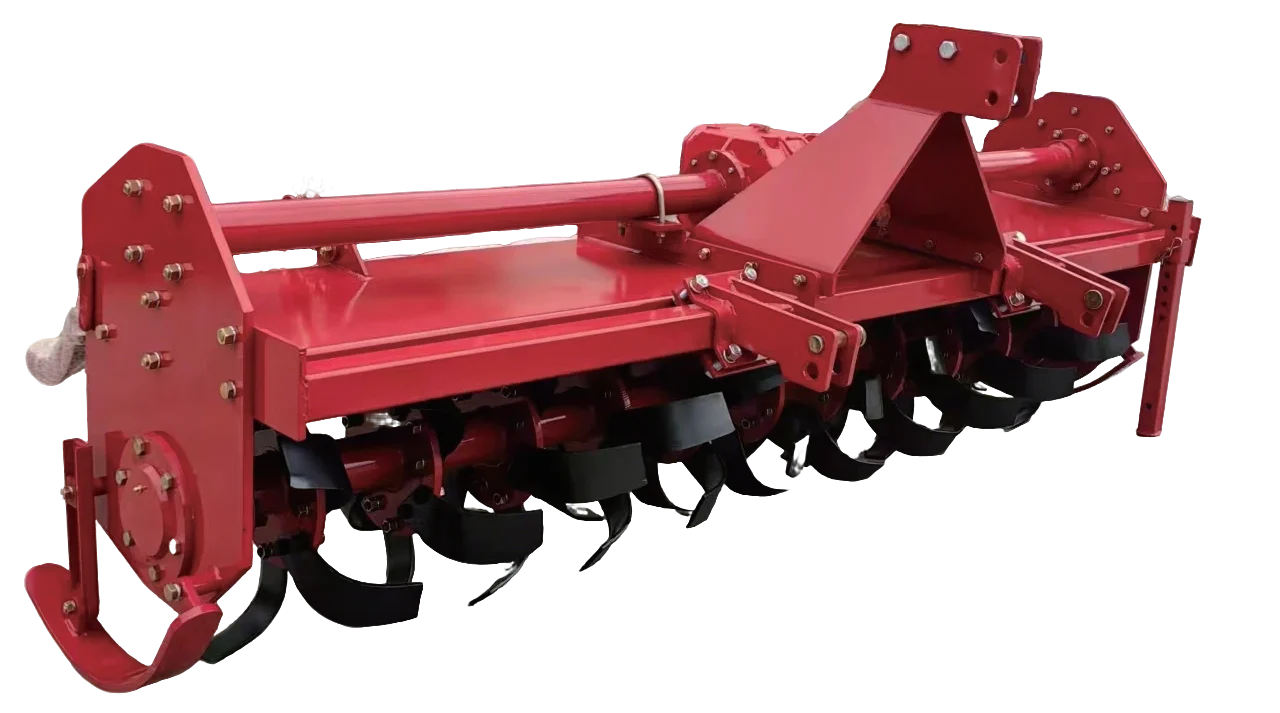

Side Gear Drive Rotary Tiller

TGLN Series Side Gear Drive Rotary Tiller – Full Product Description

The TGLN Series Side Gear Drive Rotary Tiller is medium-heavy duty high-performance rotary tillage equipment developed for medium-horsepower tractor users. It covers all mainstream working width options from 1.75m to 2.35m, perfectly compatible with tractors in 60HP to 90HP power range. Adopting full side gear transmission structure, it completely abandons traditional chain transmission, delivering zero power transmission loss and maximum transmission reliability. The symmetrically arranged rotary blade shaft can completely cover the compacted wheel tracks left by tractor rear wheels, thoroughly solving the pain points of missed tillage and poor soil breaking at wheel tracks on ordinary rotary tillers, serving as the main rotary tiller model for large-scale farms pursuing high-standard soil preparation effect.

1. Full Side Gear Transmission, No Chain and Zero Maintenance
   The power of the whole machine is directly transmitted from the side gearbox to the blade shaft, there are no chain transmission components in the whole process. There are absolutely no failure problems such as chain elongation, breakage or tooth skipping, no need to regularly tension or replace the chain, the daily maintenance workload is almost zero. The transmission system can also operate stably under years of heavy load operation.
2. Symmetrical Full Coverage Structure Completely Eliminates Missed Tillage At Wheel Tracks
   The rotary blade shaft adopts symmetrical full arrangement design. During operation, the rotary tillage range completely covers the compacted wheel tracks left by the two rear tractor wheels, the compacted soil at the wheel tracks can also be completely tilled and broken. There will be no missed tilled hard soil strips at all, the soil fineness of the whole tilled plot is completely uniform with no operation dead angle.
3. Dual Speed Version Supports Speed Switching to Adapt to Different Soil Preparation Demands
   Models with speed change function support two levels of blade shaft speed switching. Under high speed gear, the soil breaking effect is finer, which meets the soil preparation scenarios requiring extremely high soil fineness such as vegetable plots and paddy fields. Under low speed gear, the operation resistance is smaller and the rotary tillage depth is larger, which adapts to heavy load rotary tillage operations on heavy dry land and plots with lots of straw. One single machine can cover two different operation demands.
4. Maximized Machine Strength Adapts to Heavy Load Operation on Heavy Soil Plots
   The whole machine frame and gearbox are all thickened and reinforced. Even under long-term full-load operation on high-load working conditions such as northeast China black clay soil and south China heavy paddy fields, the whole machine will not have deformation or gear tooth breakage problems, the overall reliability is far higher than ordinary light-duty chain drive rotary tillers.

Typical Applications: High-standard field rotary tillage operations matched with medium-horsepower tractors, fine soil preparation and puddling operations in paddy fields, rotary tillage and soil breaking operations on heavy black soil plots, fine soil preparation operations on vegetable planting plots, and daily main rotary tillage operations for large-scale farms.
