Rotary Hay Rake

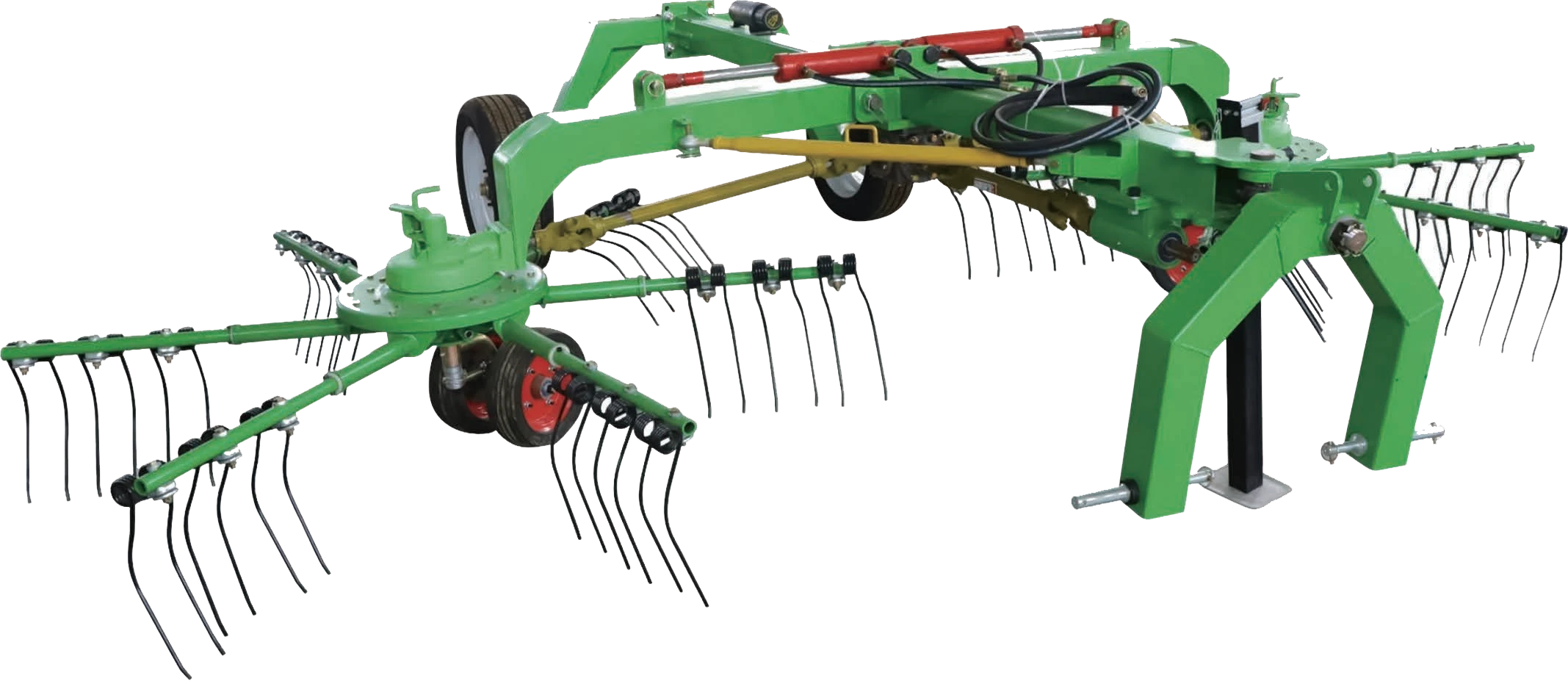

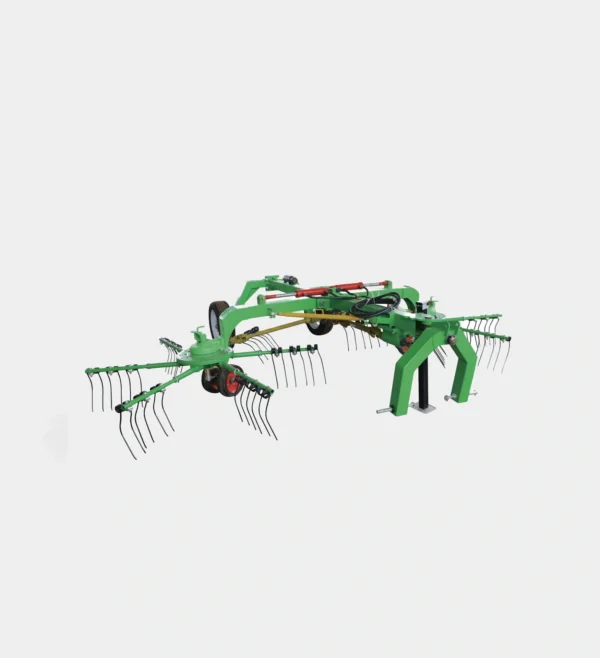

SXRR Series Rotary Hay Rake – Full Product Description

The SXRR Series Rotary Hay Rake is the professional raking equipment developed for large-scale high-quality commercial hay making scenarios. It covers mainstream working width options from 2.5m to 5m, perfectly compatible with tractors in 30HP to 100HP power range. Adopting independent rotary spring tine disc drive structure, it is differentiated from previous finger wheel rakes, focusing on low impurity rate and 2-in-1 tedding & raking function. The raked forage is clean without soil, the commercial grade of hay is drastically improved, serving as the core sharp tool for commercial forage farms to produce high-grade commercial hay.

1. Rotary Spring Tine Flexible Operation Delivers Zero Forage Damage & Ultra-Low Impurity Rate
   Adopting high-strength alloy spring tines for high-speed rotary flexible raking, the tines only gently lift the forage on the ground during operation, will not penetrate into the soil layer to scrape up soil. The final raked windrow hardly contains any soil impurities, the commercial grade of hay is far higher than the soil-carrying windrow raked by ordinary finger wheel rakes, the selling price of forage can be increased by more than 15%.
2. 2-in-1 Tedding & Raking Delivers Dual Function on One Machine
   By simply adjusting the tine angle, users can switch to forage tedding mode, which spreads the freshly harvested wet forage evenly on the ground for fast sun drying and dehydration. After drying, switch back to raking mode to rake the semi-dry forage into neat windrows. One single machine can complete both tedding and raking processes, no extra special tedder is needed, which drastically saves equipment investment.
3. Hydraulic Folding Delivers Flexible & Road Legal Transition
   The full series supports fast hydraulic folding, the overall width of the maximum 5m model after folding is drastically reduced, which fully meets the public road driving standard on rural roads. No disassembly or adjustment is needed during cross-plot transition, users can hitch it to the tractor and drive on roads directly, the transition operation is very flexible.
4. Full Series High-Efficiency Operation Adapts to Different Scale Pastures

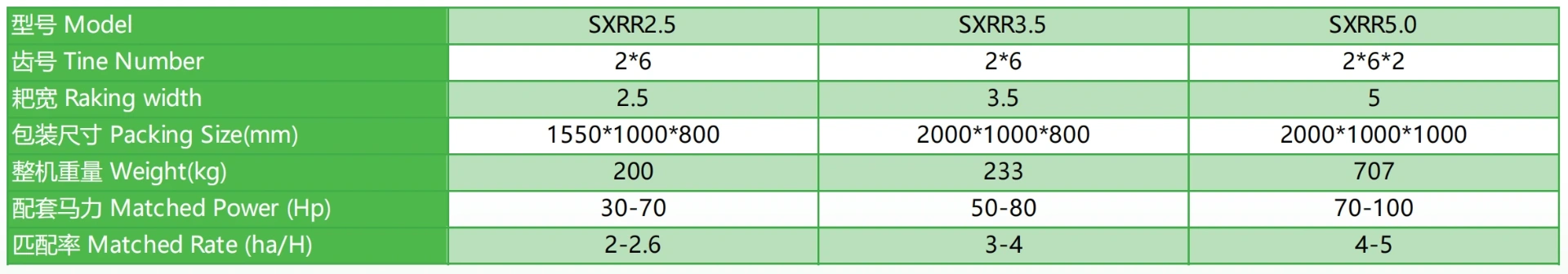

   The 2.5m and 3.5m single-rotor models are compatible with 30-80HP tractors, with high flexibility to operate flexibly on small and medium plots, the hourly operation efficiency can reach 2-4 hectares. The maximum 5m dual-rotor model is compatible with 70-100HP high-horsepower tractors, the hourly operation efficiency can reach 4-5 hectares, which fully meets the high-efficiency operation demand of large-area hay making on medium-scale pastures.

Typical Applications: High-quality alfalfa commercial hay raking operations, even tedding and dehydration operations after forage harvesting, full-process hay making operations on large-scale pastures, low-impurity forage raking operations on forage planting bases, and multi-purpose forage processing operations on small and medium farms.
