Heavy-Duty Subsoiler

1S Series Multi-Spec Heavy-Duty Subsoiler – Full Product Description

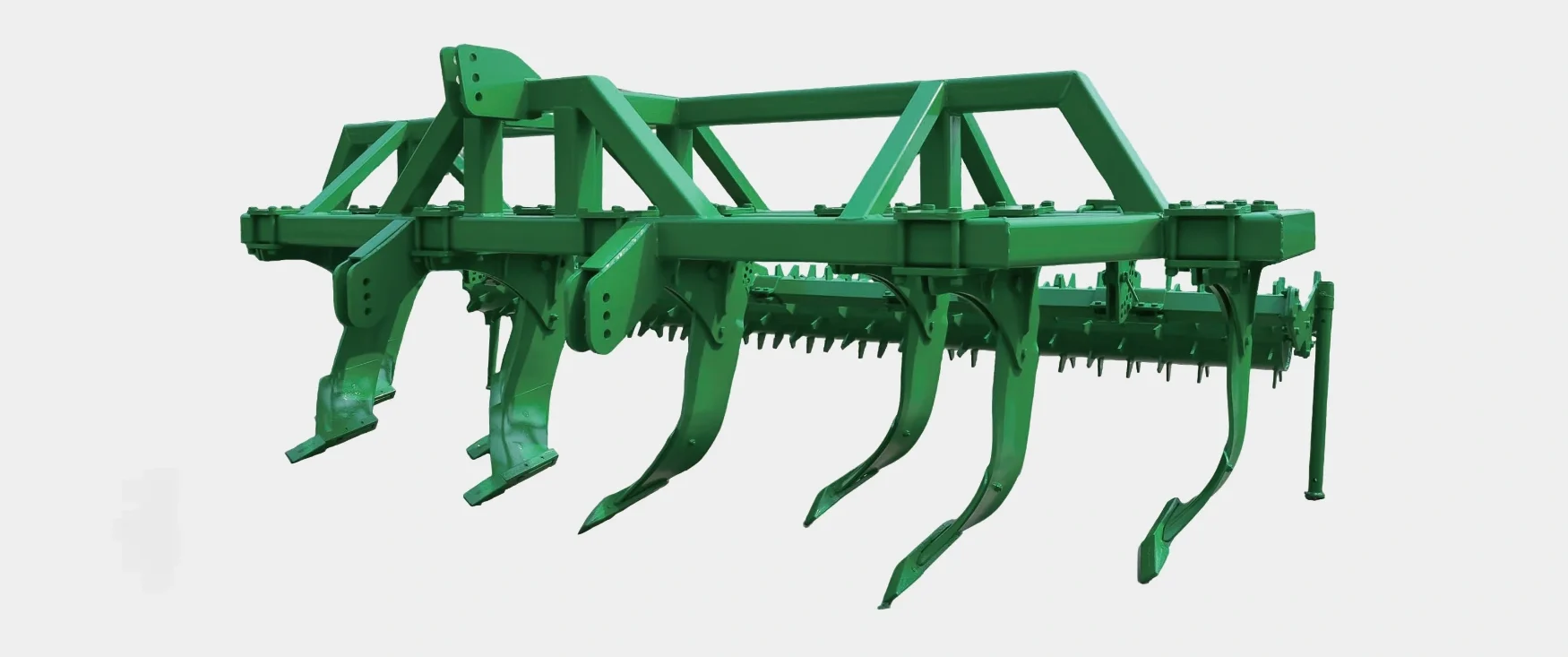

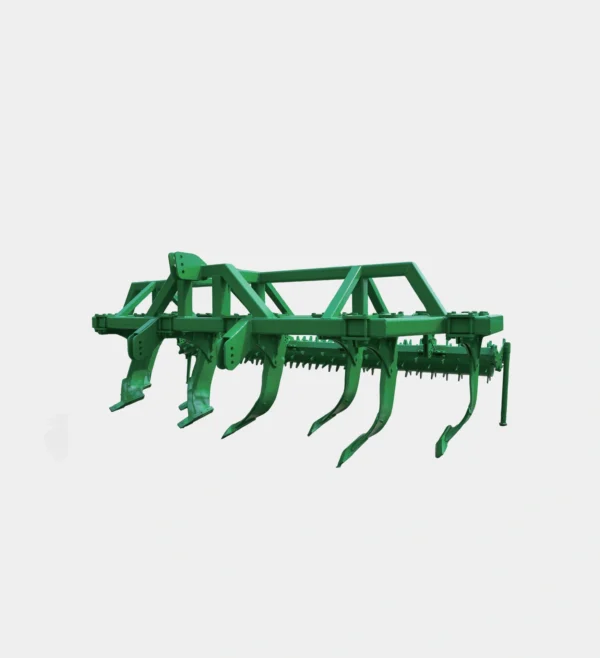

The 1S Series Multi-Spec Heavy-Duty Subsoiler is flagship heavy-load subsoiling equipment developed for ultra-large-scale contiguous farms. It covers all mainstream configurations from 2 rows to 8 rows, perfectly compatible with high-horsepower tractors in 50kw to 260kw power range. Adopting industry-leading offset-column curved surface subsoiling shovel structure, the operation resistance is more than 20% lower than traditional straight-column subsoiling shovels. Matched with the integrated rear soil breaking and press roller, it directly breaks and levels the raised soil blocks after subsoiling, no extra subsequent soil preparation operations are needed. One single pass can deliver perfect seed-ready plots, serving as the ultimate solution for large-scale conservation tillage subsoiling operations.

1. Offset-Column Curved Surface Subsoiling Shovel Delivers Low Resistance, High Efficiency and No Straw Tangling
   The subsoiling shovel adopts unique offset-column curved streamline design. During operation, the shovel column completely slides past the side of crop stubble, will not tangle long straw and weeds. The curved shovel surface cuts into the soil along soil gaps, the soil penetration resistance is more than 20% lower than traditional straight-column subsoiling shovels. Tractors with the same power can drive models with larger working width, the operation fuel consumption is drastically reduced.
2. Three-Level Depth Configuration Adapts to Different Soil Preparation Demands

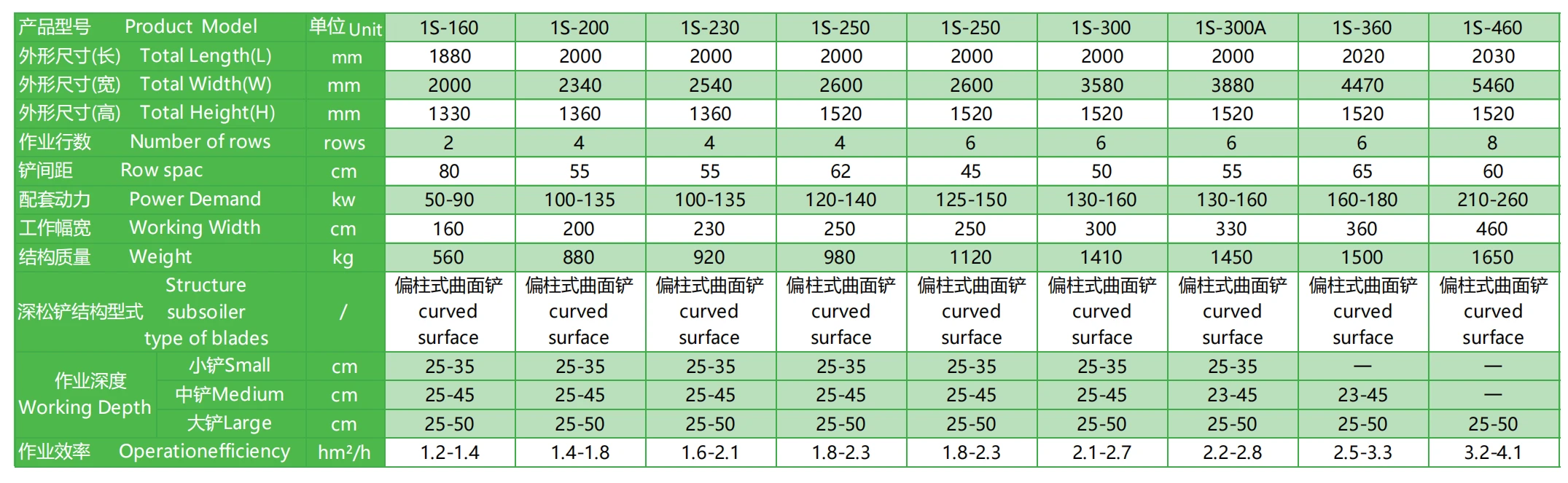

   The full series supports three-level depth configurations: small shovel 25-35cm, medium shovel 25-45cm, large shovel 25-50cm. Users can freely select according to the plow pan depth of local farmland, which can not only meet the demand of breaking old plow pan at shallow layer on conventional plots, but also realize the operation requirement of breaking the hard deep plow pan deposited for many years at 50cm maximum depth, adapting to the subsoiling demands of different farmland in different regions.
3. Ultra-Wide Working Width and High Operation Efficiency Adapt to Large Contiguous Farms
   The 8-row model with maximum 4.6m working width can reach the highest operation efficiency of 4.1 hectares per hour. 10 hours of operation per day can easily complete more than 40 hectares of contiguous subsoiling work, which fully meets the concentrated subsoiling operation demand of ultra-large farms with thousands of acres of farmland, the whole subsoiling soil preparation work of all farmland can be completed in a short time without missing farming season.
4. Rear Integrated Soil Breaking and Press Roller Forms Seed-Ready Plots In One Pass
   The tail of the whole machine is integrated with an all-in-one soil breaking and press roller. After the subsoiling operation is completed, it immediately breaks the large soil blocks turned up by subsoiling, and moderately presses and levels the loose ridge surface. The plot after subsoiling directly reaches the seed-ready state, no need for subsequent rotary tiller or soil preparator to enter the field for secondary finishing, which drastically reduces field entry times and operation cost.
5. Full Heavy-Load Thickened Frame Delivers Years of Reliable Operation Under Extreme Working Conditions
   The whole machine frame is welded with extra-thick high-strength alloy square tubes, all force-bearing connection points are reinforced with stiffeners. Even under full-load maximum depth operation on stony hard plots and heavy clay black soil plots for years, the whole machine will never have deformation, welding crack or shovel breakage problems, the overall design service life is several times longer than ordinary light-duty subsoilers.

Typical Applications: Contiguous conservation tillage subsoiling operations on ultra-large contiguous farms, deep subsoiling soil preparation operations in northeast China black soil regions, pre-planting subsoiling operations on large-area potato planting bases, deep water storage and moisture retention subsoiling operations in arid regions, and high-efficiency subsoiling operations for large-scale farms to seize farming season.
