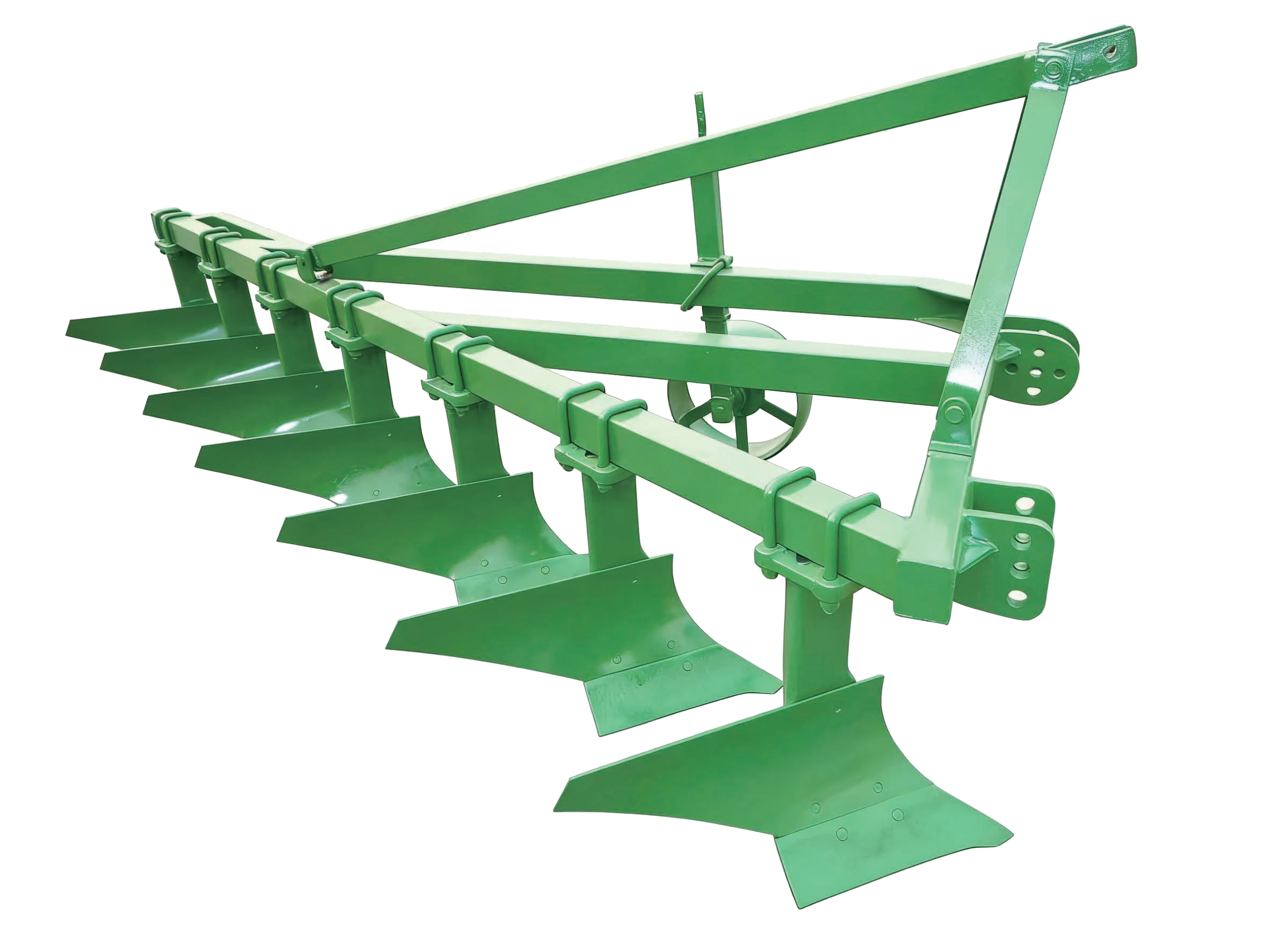

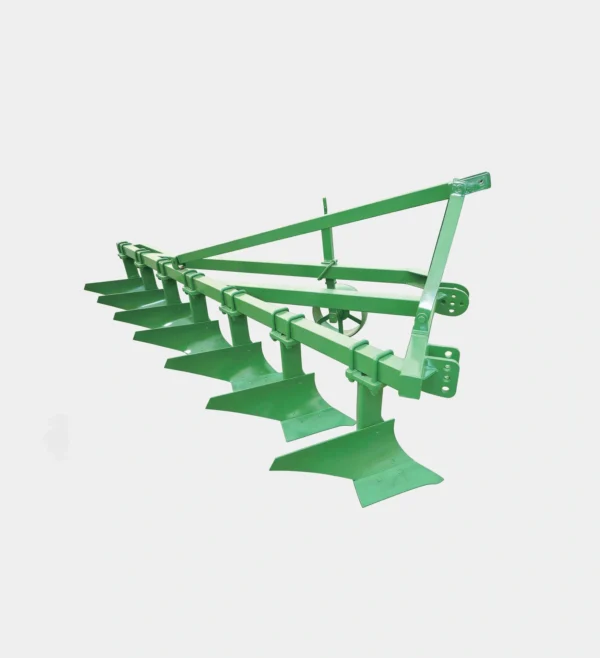

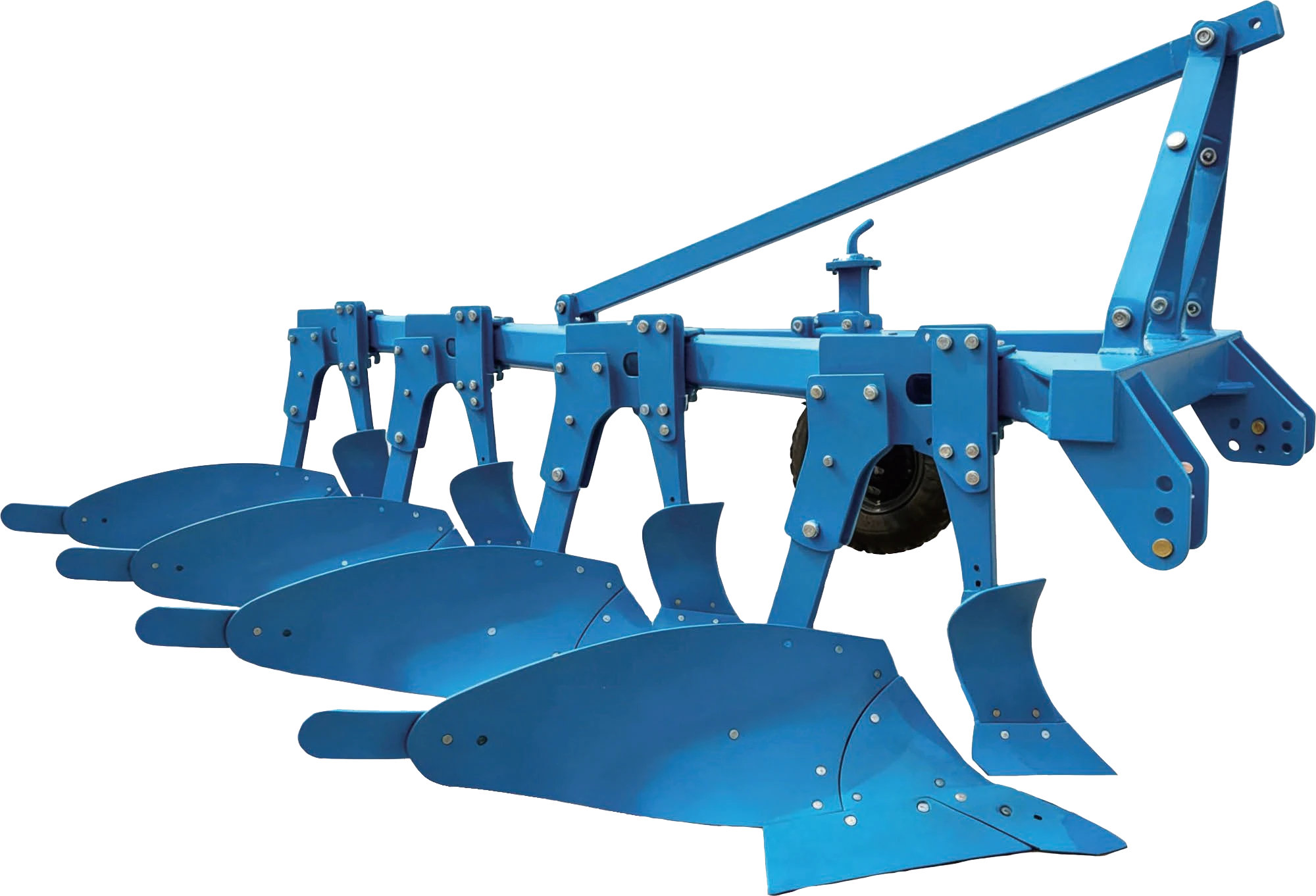

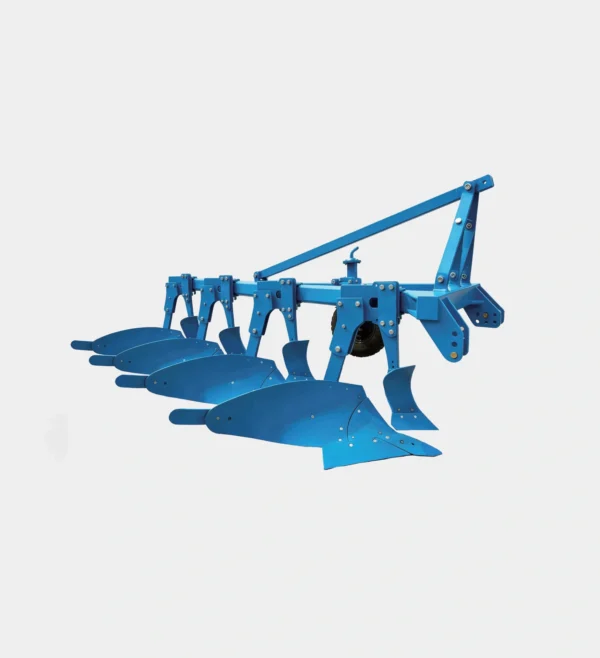

Fully Mounted Furrow Plough

1L Series Fully Mounted Furrow Plough – Full Product Description

The 1L Series Fully Mounted Furrow Plough is classic fully mounted moldboard plough equipment developed for global traditional dry farming regions. It covers all mainstream configurations from 2 bottoms to 6 bottoms, perfectly compatible with tractors in 40HP to 220HP power range. Adopting well-proven curved plough body structure optimized by hundreds of years of agronomy practice, it directly completely turns the soil within 30cm top layer during operation, deeply buries all surface weeds, crop stubble and insect eggs underground, and turns deep raw soil to the surface for ripening, serving as the most direct and high-efficiency soil preparation implement to realize traditional deep tillage soil improvement, stubble breaking and weeding.

1. Full Turnover Plough Body Completely Turns Under Stubble and Weeds
   The curved plough body is optimized by hundreds of years of agronomy design. During operation, it can completely turn the whole soil layer 180 degrees. All crop straw, weed roots and overwintering insect eggs on the surface are deeply buried in the soil layer below 20cm, completely losing germination conditions. No extra herbicide is needed to drastically reduce the weed population of next season crop, the stubble breaking and weeding effect is far better than rotary tillers.
2. 20-35cm Large Tillage Depth Completely Breaks Surface Compacted Layer
   The maximum working depth can reach 35cm, far exceeding the working depth of ordinary rotary tillers. The shallow hard plow pan formed by years of rotary tillage can be directly completely turned up, the deep raw soil is turned to the surface and naturally ripened by sun exposure and weathering over one planting season, the thickness of the effective topsoil layer of farmland is directly doubled, the farmland fertility will steadily improve year by year under long-term usage.
3. Dual Plough Body Specifications Adapt to Different Horsepower Ranges and Different Plots

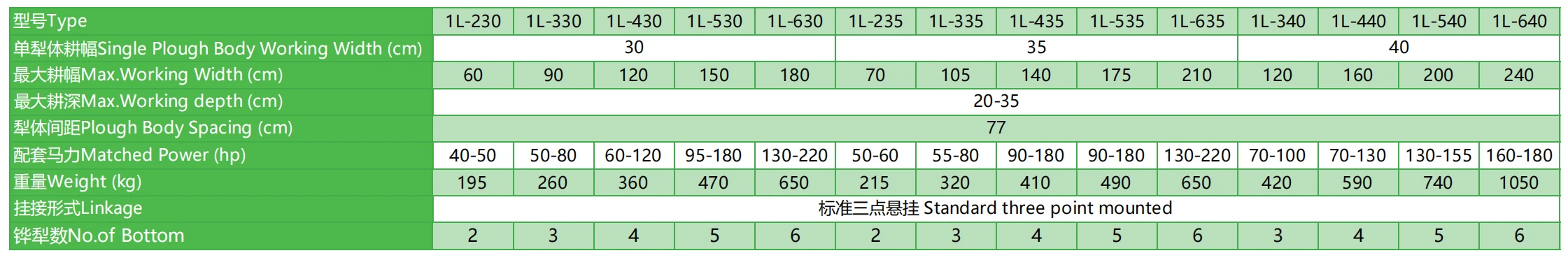

   The full series is divided into two major product lines with 30cm single plough body working width and 35cm single plough body working width. Small horsepower tractors can be matched with multi-bottom models with small single width, high horsepower tractors can be matched with large working width models with large single width. Most dry land soil types such as loam and sandy loam can be perfectly adapted, the operation resistance is balanced, there will be no overload problem that the tractor cannot pull the implement.
4. Full Rigid Thickened Frame Never Deforms Under Years of Heavy Load Operation
   The whole machine is welded with thickened high-strength section steel into an integrated rigid frame, all plough body connection positions are reinforced. Even under years of full-load deep tillage operation on gravel plots and moderately heavy loam plots, the machine frame will never have deformation, welding crack or plough body displacement problems, the overall design service life is extremely long.
5. Extremely Simple Structure with Many Universal Parts Delivers Extremely Low Maintenance Cost
   The whole machine has no complex transmission components, the core wearing parts are only plough share and moldboard, which are standard accessories universal in the global agricultural machinery market, replacement parts can be easily purchased in any region. There is almost no daily maintenance needed, there is almost no extra operation and maintenance investment under long-term usage, serving as the low-cost traditional soil preparation implement with maximum reliability.

Typical Applications: Annual deep tillage soil improvement operations in traditional dry farming regions, full quantity turning under operations of crop stubble and weeds, deep tillage soil preparation operations on loam and sandy loam fields, raw soil ripening operations on newly reclaimed wasteland, and rotational tillage stubble breaking operations for large-scale farms.
